Aston Martin V12 Timing Chain Kit

This German aftermarket timing chain kit is manufactured by HEwerk.de for selected Aston Martin V12 engines.

When Is This Timing Chain Kit Needed?

This is not normally considered a mileage-based service kit. The Aston Martin V12 engine is generally regarded as durable, so replacement should follow proper inspection and diagnosis rather than vehicle age alone.

The kit may be required if a specialist confirms timing-chain wear or slack, damaged guides, worn tensioners, timing faults or a persistent rattle from the timing-cover area. It can also be used during a complete engine rebuild.

The important detail is that the V12 timing drive uses two chains and two tensioners. This kit allows the main timing components on both sides of the engine to be renewed during the same repair. A rattle alone does not confirm timing-chain failure, so the engine should be properly diagnosed before ordering.

Vehicle Fitment

• Aston Martin DB7 Vantage
• Aston Martin DB9 2004–2012
• Aston Martin DB9 2013–2016
• Aston Martin DBS V12
• Aston Martin Rapide
• Aston Martin V12 Vantage
• Aston Martin Vanquish V12
• Aston Martin Virage V12
• Aston Martin One-77
• Aston Martin V12 Zagato

Fitment note: Component use can vary between production years and engine versions. Please compare the listed part numbers or contact us with your VIN before ordering.

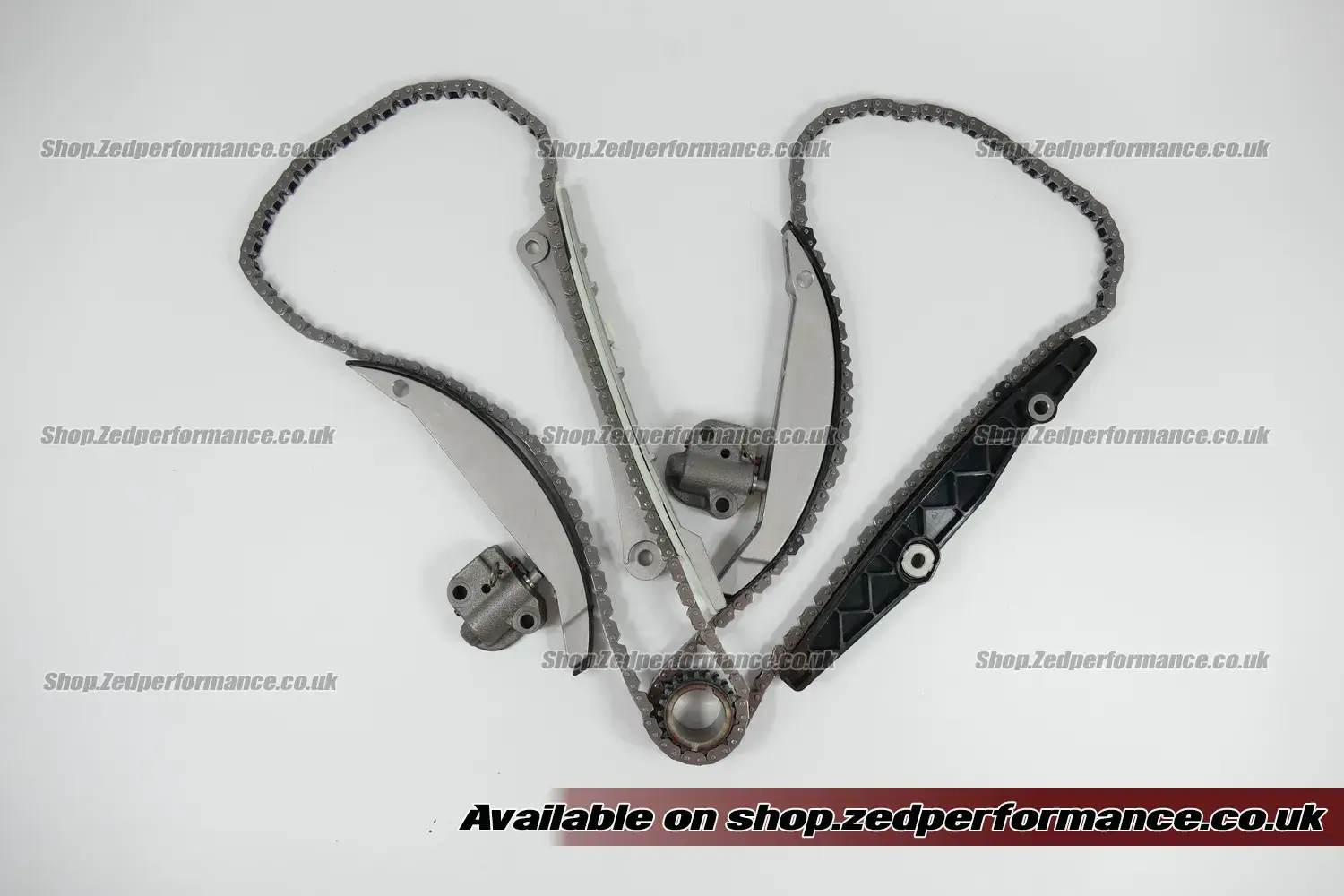

Timing Chain Kit Contents

• 2 × timing chains – 1R12-03-10483
• 1 × plastic timing-chain guide – 1R12-03-10070
• 1 × aluminium timing-chain guide – 1R12-03-10069
• 2 × timing-chain tensioners – 03-85079, 1R12-03-10071
• 2 × curved “banana” timing-chain guides – 4G43-03-10013
• 1 × crankshaft sprocket – 4G43-02-10012
