  • Outlander 2.2 DiD 4N14 balance shaft & timing chain kit
Outlander 2.2 DiD 4N14 balance shaft & timing chain kit

Outlander 2.2 DiD 4N14 balance shaft & timing chain kit

  • £189.99
  • Product Code: Outlander-4N14
  • Availability: In Stock

5 reviews / Write a review

Available Options

Qty + -

  • Description
  • Specification
  • Reviews (5)

Coupling is temporarily out of stock in our EU stock but we have everything in stock in our UK warehouse. If you choose EU location please do not add the coupling.

If you opt in Timing chain and/or crankshaft seal (UK stock) they will be dispatched separately.
If you opt in Timing chain and/or crankshaft seal (EU stock) they will be dispatched together with the balance shaft in the same parcel.

It is highly recommended to order the balance shaft with the coupling cube. The genuine balance shaft coupling is made of soft material and even if you replace if with genuine one it will wear out fairly quickly. Our coupling is heat treated throughout and provide better durability.

Mitsubishi Outlander 2.2 DiD engines suffer from a bad balance shaft design. All years between Nov, 2012-11  to March 2018. Although many owners complained of this problem Mitsubishi have not called back these models.
It is very likely that before 2018 they became aware of the problem as they improved the balance shaft assembly design. Models produced after March 2018 are no longer affected.

Symptoms are rattling noise & tik-tik sound of the balance shaft. Sounds like a bag of spanners left inside the engine.

Cause of the problem are balance shaft and the balance shaft coupling cube. Can be seen here in this video:



Here we show in the video the rattling noise that this Outlander 4N14 engine gives:



The problem begs the question how to resolve this rattling sound. You've got several options. The source of the noise can be a worn coupling cube AND/OR a faulty balance shaft gear which usually has broken teeth.
You are lucky if Mitsubishi warranty still covers your vehicle. In that case you can ask the dealership to replace your balancing module with an upgraded version which was fitted models after March 2018.
Dealership will not change only the balance shaft or the coupling but replace the entire balancing assembly.

Unfortunately many owners are no longer covered by Mitsubishi warranty and they still have to resolve this problem. Options you've got:

1. Although you are no longer covered by warranty you can still walk in a dealership but then you will need to pay for parts as well as labor. This can result in a £2600+ bill. Your balancing module will be upgraded by the revised version and gives you a lifetime fix.

2. If  your balance shaft is in good shape (no broken teeth) then it is worth replacing the coupler only. It usually has a huge play.

See pic below:

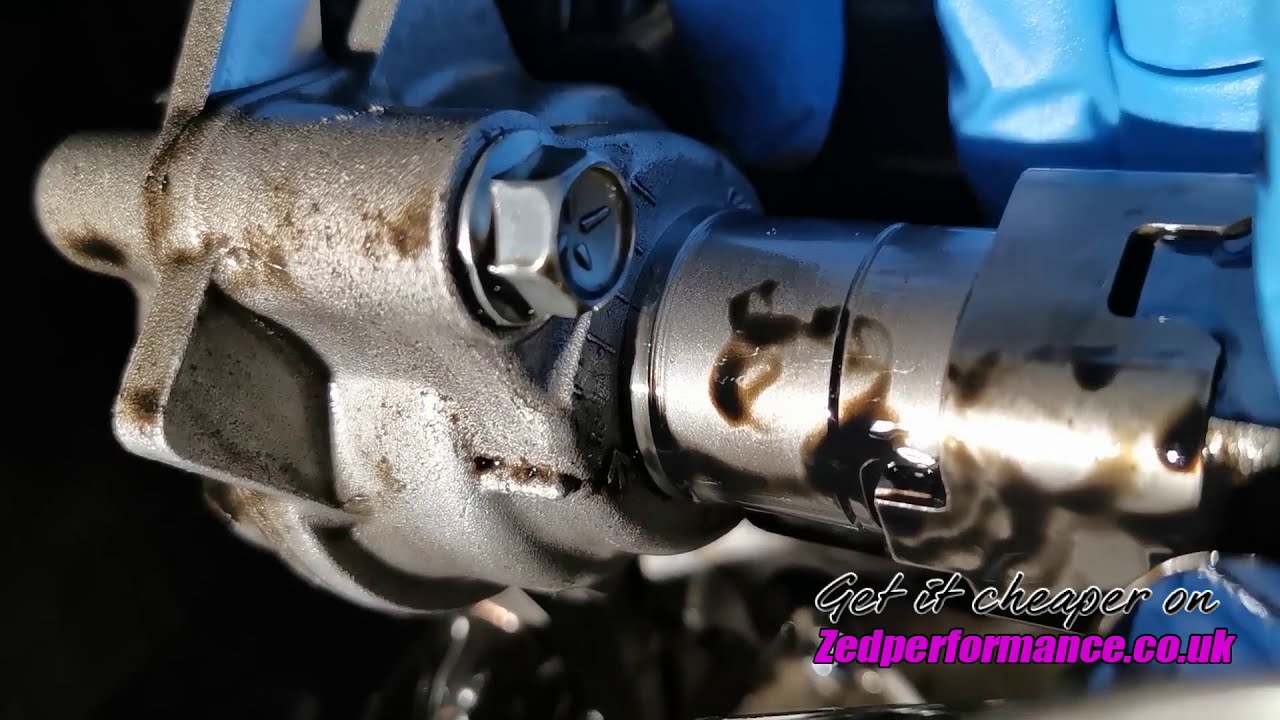

4N14 balancing coupling


3. Balance shaft delete. If you've got a faulty Outlander balance shaft then you can simply get rid of it along with the coupling but lets not forget that there is a reason why engines are fitted with balancing mechanism. It gets rid of unwanted engine vibrations. Removing the balancing drive is never an elegant solution. You may expect engine vibration at higher RPM. It can also cause lower oil pressure which will not be visible immediately as the oil pressure will still be sufficient to avoid "low oil pressure" warning on the dashboard. It might be ok today but it might not be ok 30000 miles later. You will also need to plug oil feeds to the shaft. For 4th option see below pics.

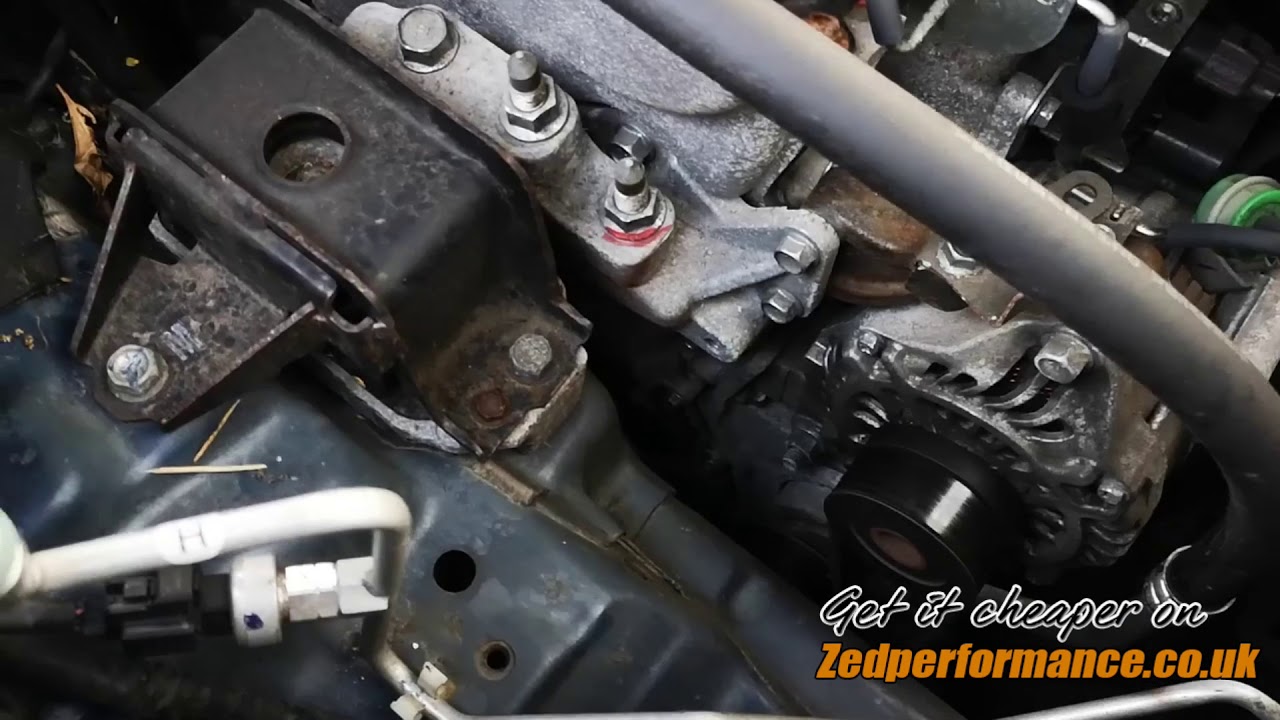

Outlander 2.2 DiD 4N14 balance shaft Mitsubishi 4N14 balance shaft delete


4. There is a new revised balance shaft kit available from other online stores. This new "revised" balancing unit is for 2.3 DiD engines but can be used to fit 2.2 DiD. It circulates online for around £2500. We don't sell this "new revised" set as it is actually a worse design by Mitsubishi than the first version.  First balancer unit has a cube shaped coupler the revised unit has a round shaped coupling unit. Usually this revised design is offered by Mitsubishi on the Outlanders still covered by warranty.

With the first (stock) version of this Outlander balancing unit these diesel engines start to make noise ~50.000 miles. The new "revised" type will last only ~30.000 miles before it starts to make the same noise and issues as the first original version. It is just a heads up before you decide to go ahead and make a bald decision to spend £2500 on the new revised balancing unit.

5. If you've got broken teeth on the balance shaft then you can replace the old shaft AND the coupling cube. We offer both in our online store. In this case engine vibration will not occur and you don't have to be worried of lower oil pressure.

The problem occurs quite early after only 40K miles. It is worth changing the timing chain kit as well as the crankshaft seal.

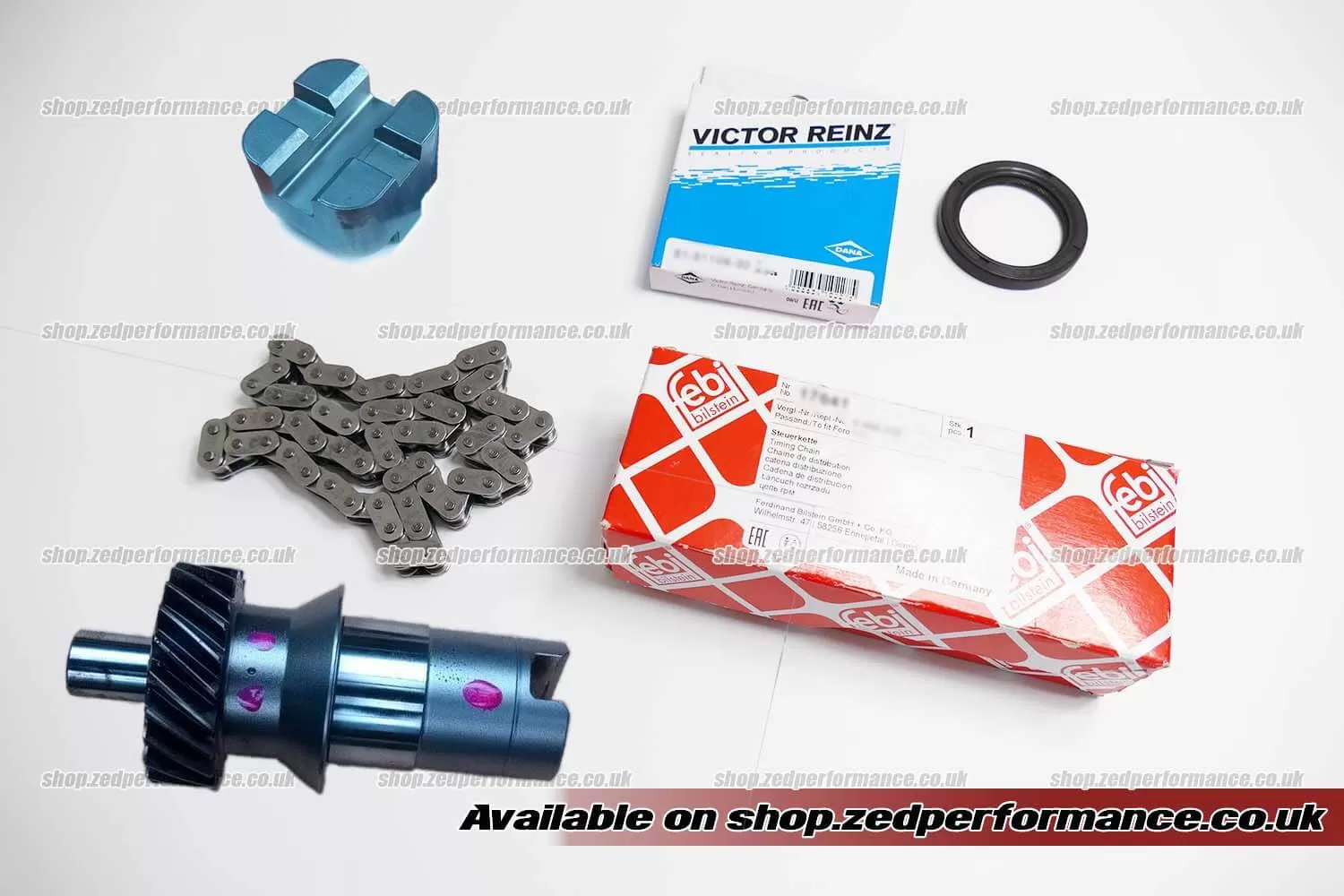

Price for £199.99 includes the balancing shaft only!
As an additional option you can add above ADD TO CART button:

* Balance shaft coupling cube
* Febi timing chain
* Reinz front crankshaft seal

If you don't see either of these options available above ADD TO CART button it is likely that they are temporary out of stock.

Fits:

Outlander 2.2 DiD (4N14) MK2
Outlander 2.2 DiD (4N14) MK3
Outlander 2.3 DiD (4N14)
ASX 2.2 DiD (4N14)

Timing chain kit & balance shaft installation manual which shows the timing marks on the correct setup:


Outlander 4N14 balance shaft timing marks

Technical
Model GA8W, GF6W. CW1W, GA8W. Fits both Outlander MK2 and MK3 and ASX with the 2.2 DiD (4N14) engines.
Part No. 1132A027
