Vacuum bagging & forming kit

This kit and the vacuum pump can be used for vacuum forming machine which would allow you to do small parts.

If you've found this product then we are sure you know how vac forming works. If you want to do something neater than what you can do in your kitchen oven or with a domestic vacuum pump then this vacuum bagging kit would work our for you. For small or medium DIY jobs this kit will be an excellent choice. The vacuum pump will draw the air out under the sheet so that the plastic forms the object to shape. This vacuum bagging kit includes two through bag connectors.

You will need a vacuum pump which is fast and thorough to assure you of complete dehydration. This Vacuum Pump we offer you just meets your requirements of saving time and trouble-free operation. It can also be applied to vacuum packing, printing machinery, hot-forming plastic etc.

Usage:

*vacuum bagging
*thermo (hot) forming
*vacuum forming

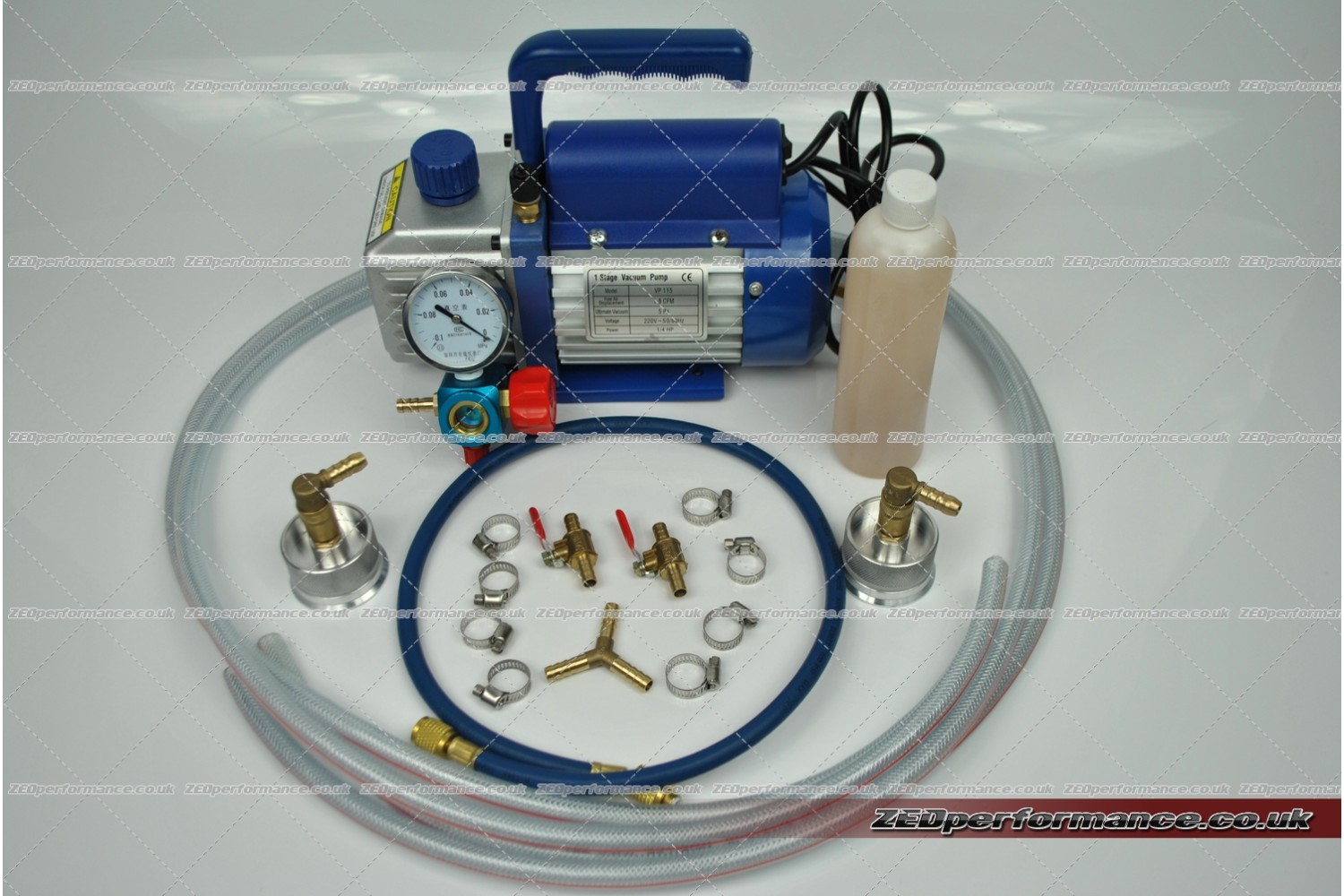

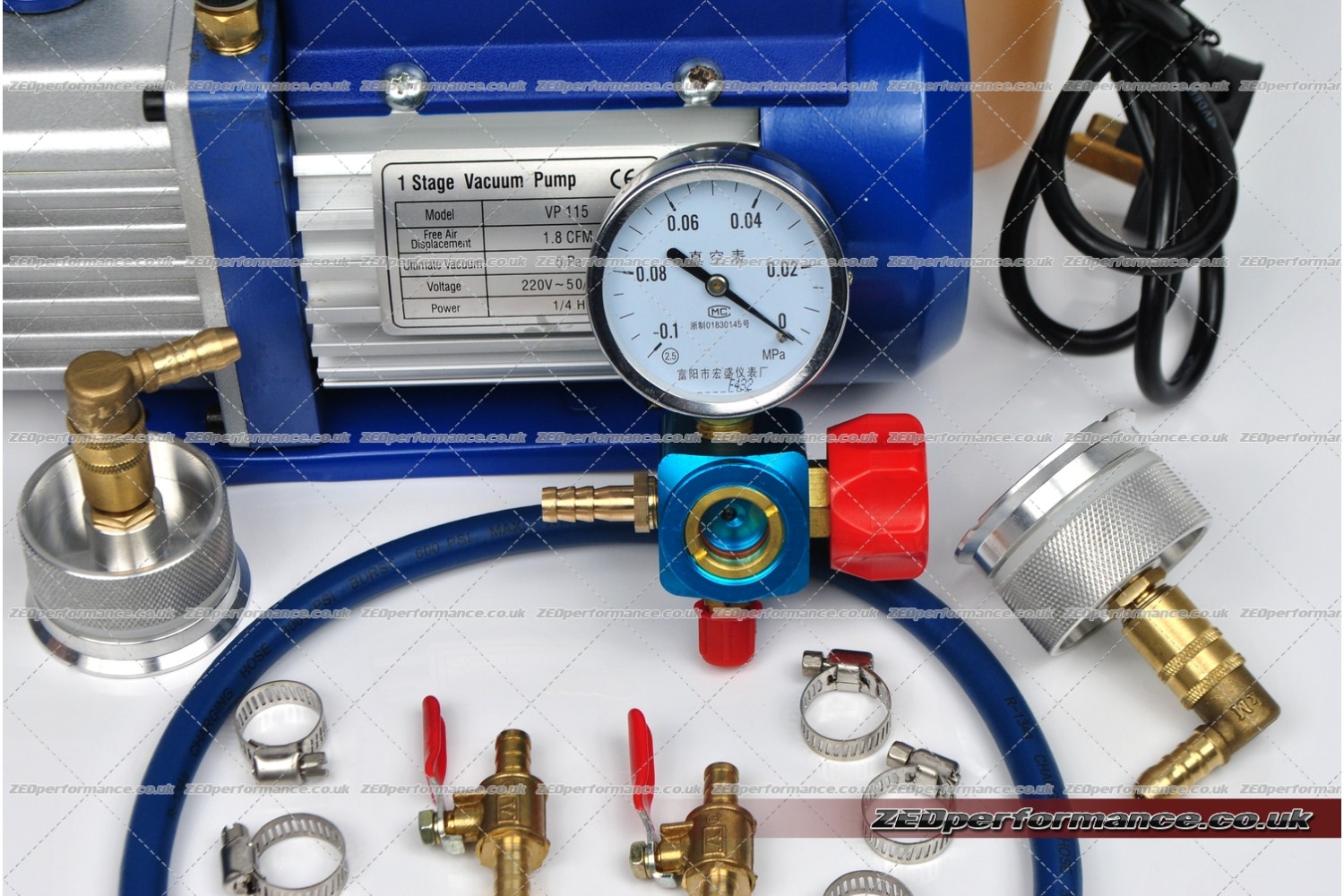

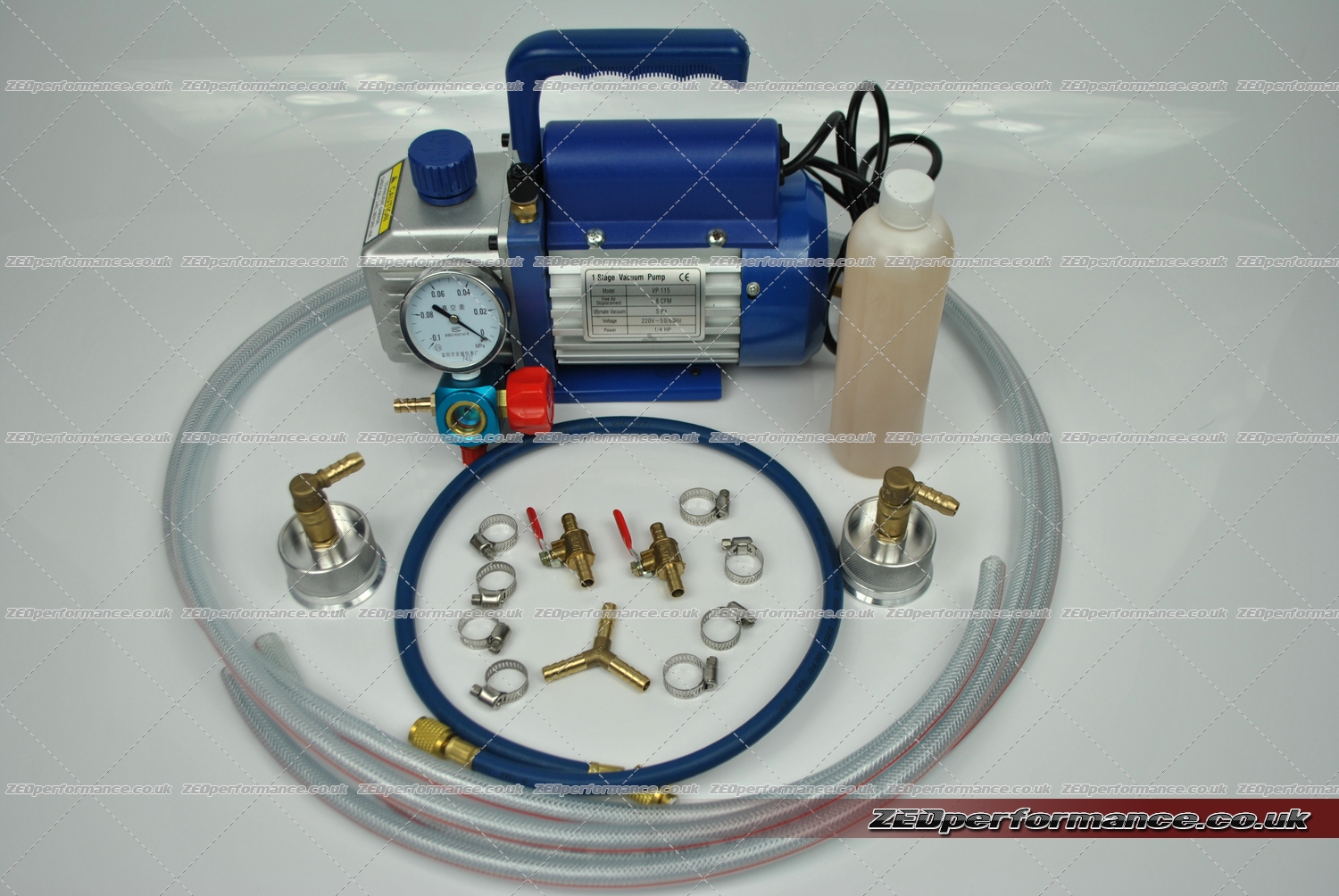

Listing Includes:

1x 51 L/min Single-Stage Rotary Vane Vacuum Pump

    High Efficiency and Low Noise
    Heavy-duty Aluminium Alloy Casing
    With Oil Drain Plug Positioned at Bottom of Oil Reservoir
    Internal High Volume Cooling Fan For Extended Use
    Exhaust Port with Exhaust Cap

Features:

    Direct Drive Motor Allowing Easy Starting and is Maintenance Free
    Oil Sight Glass For Monitoring Oil Levels
    ON/OFF Switch
    Non Slip Cushion Handle

 SPECS:

    Voltage /Frequency: 220V/60HZ
   Flow Rate: 51 L/MIN
   Ultimate Vacuum: 5 Pa (0.05mbar)
   RPM: 1400 RPM
   Power: 1/4HP
   Inlet Port: 1/4" Flare & 3/8" FLARE
   Oil Capacity: 300 ml

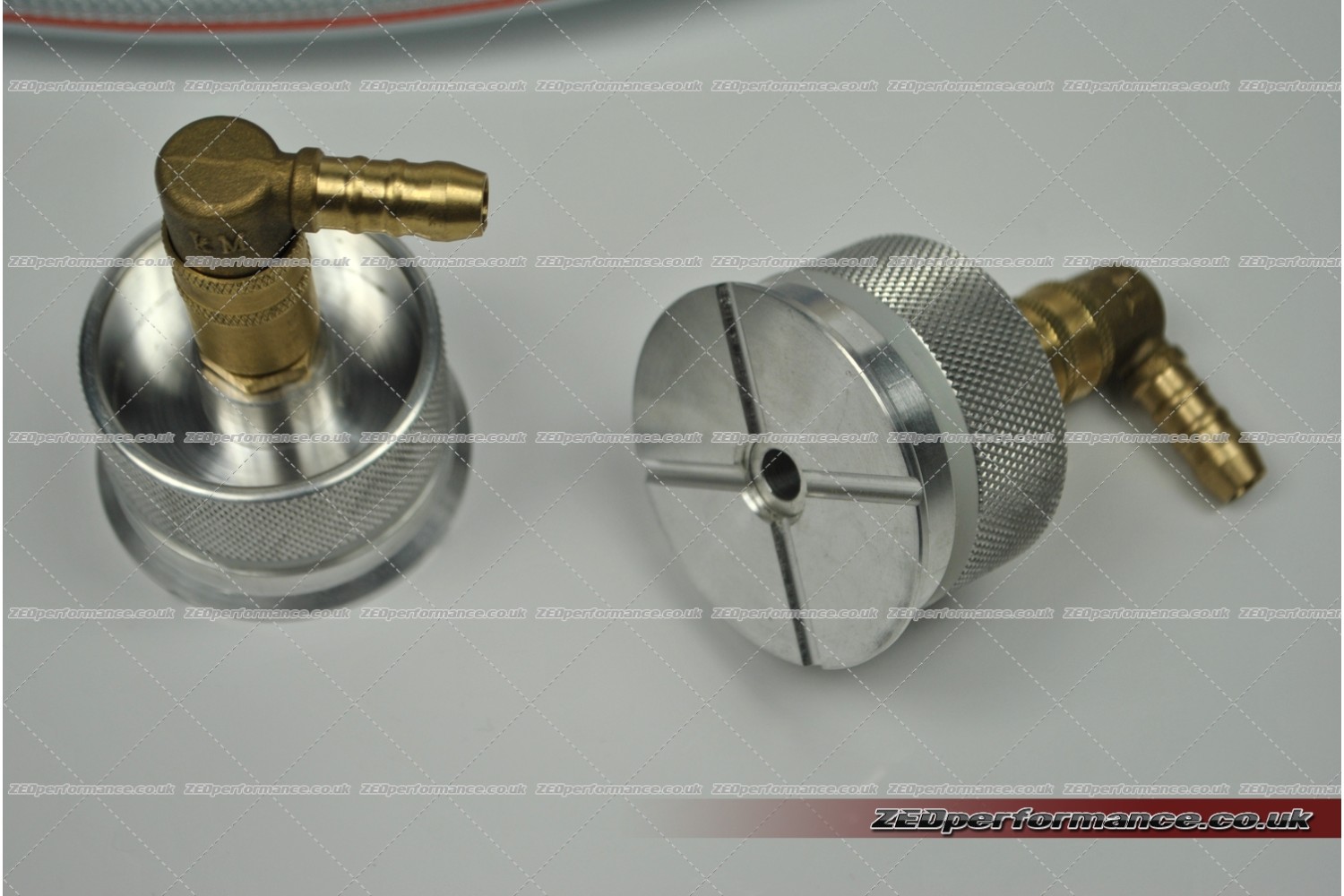

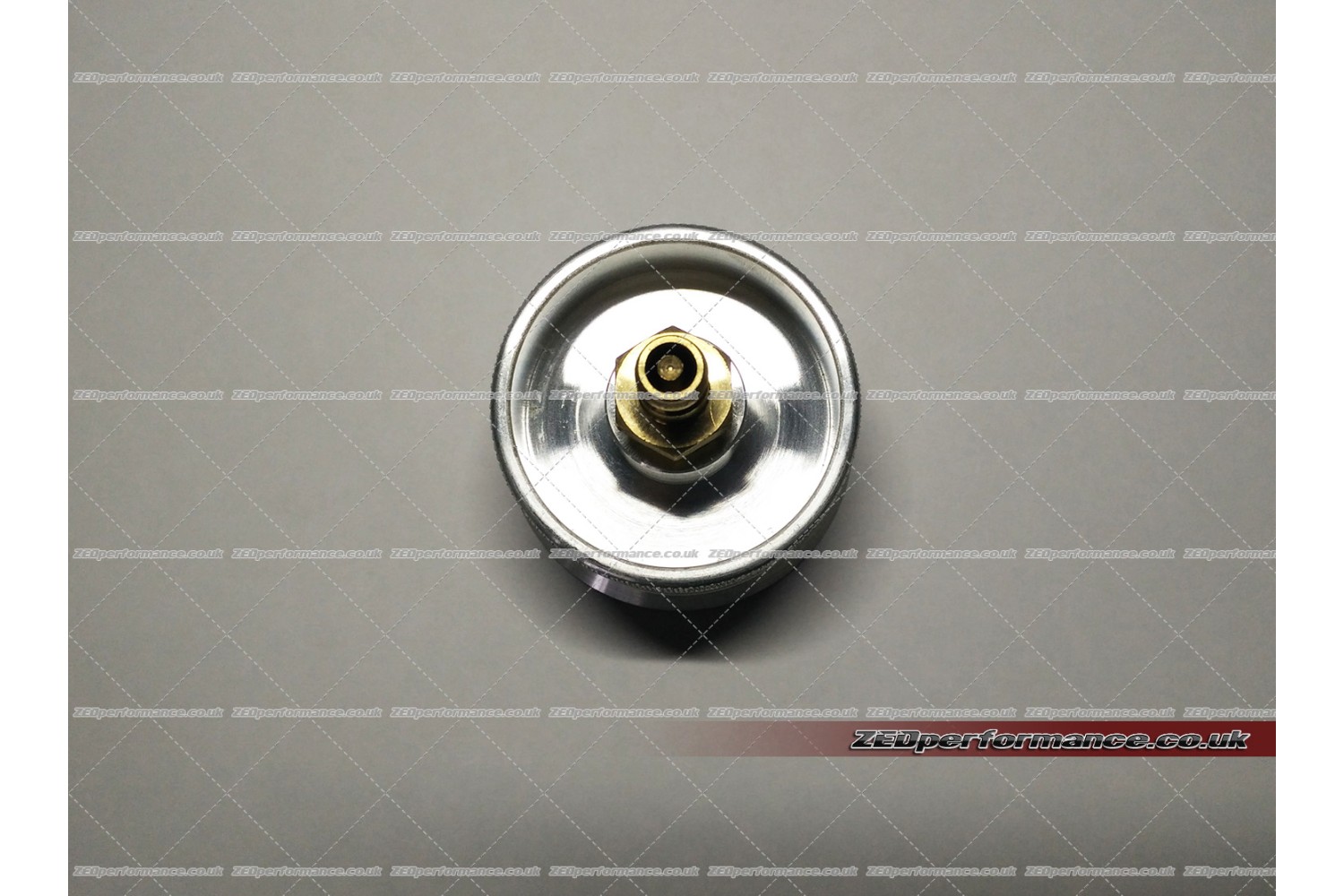

2x Through bag connector and gaskets

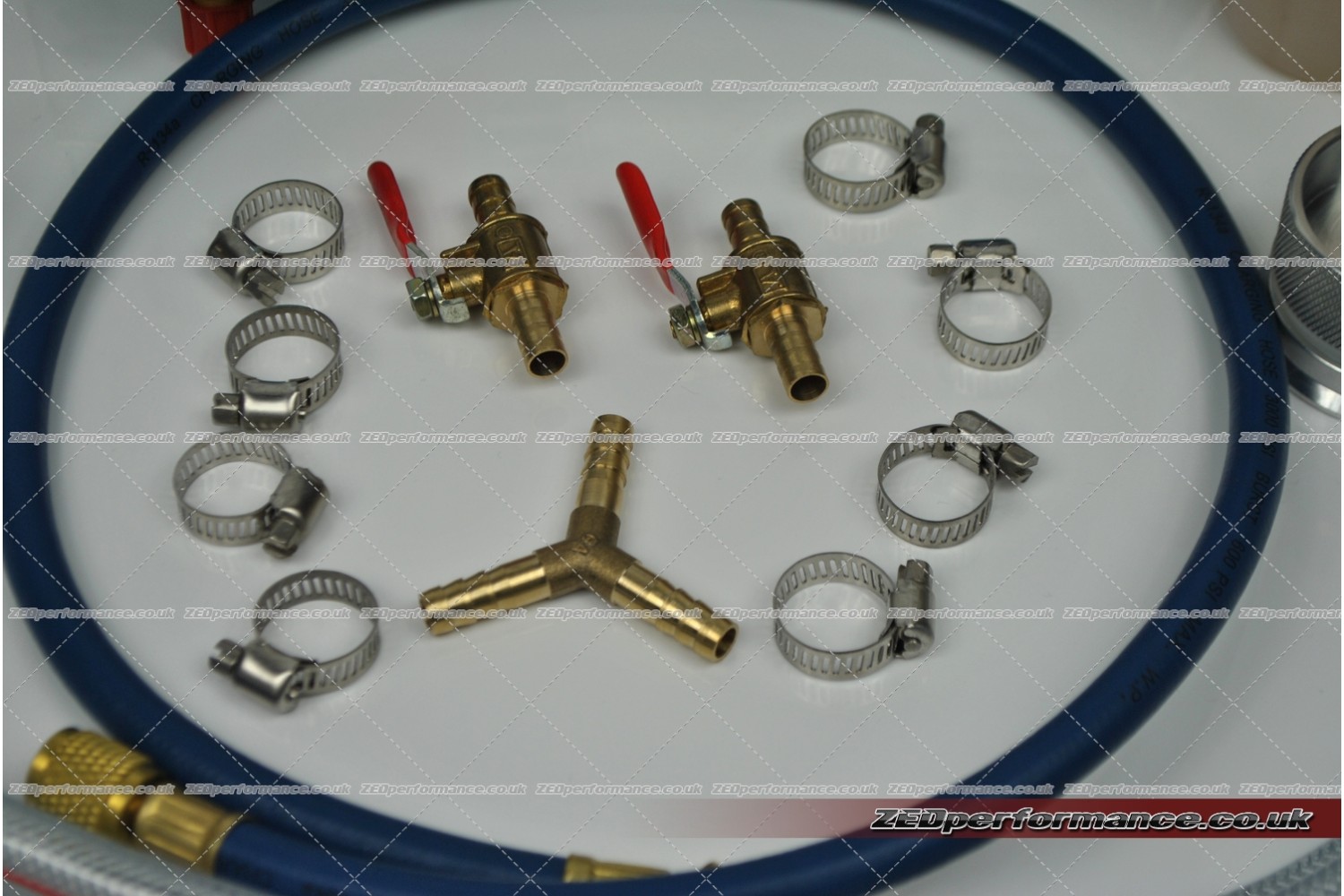

2x Mini ball valves

1x 23inch long hose

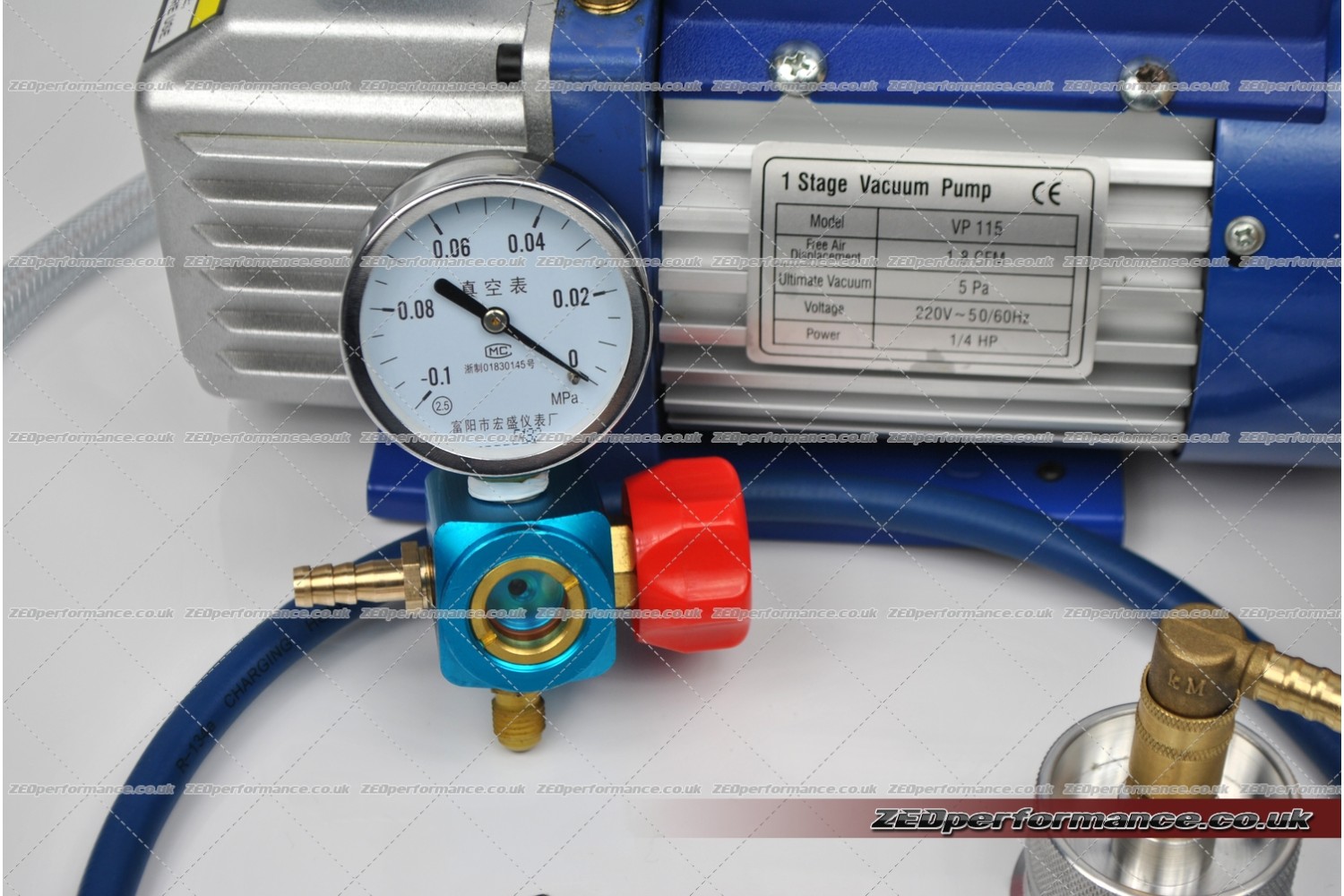

1x Vacuum gauge and manifold
2x Quick connectors with 8mm connection (installed on through connectors)
1x Compressor oil
1x "Y" connector
1x  Plastic hose provided to connect the manifold to the quick connectors' inlet

Example connections:
