R410a AC refrigeration HVAC tool kit
| Brand: | Aircon Tools |
| Product Code: | r410a-charging-tool |
| Availability: | Out Of Stock |
-
£219.99
Available Options
We offer an AC recharge tool kit for HVAC technicians. It is a mini kit which includes all essentials and can be used by DIY users. Please note that the tube flaring tool is not an eccentric type. If you need the eccentric type you will find a similar kit in our online store.
Features:
Features:
* The gauge scale is for r134a, R22. R410a and R404a gases. (Others have just R134a scale on the gauge.)
* Incredible 70inch (1.75 meter) long hose. (Others on ebay offer just a tiny 0.9m or 1.2m hose.)

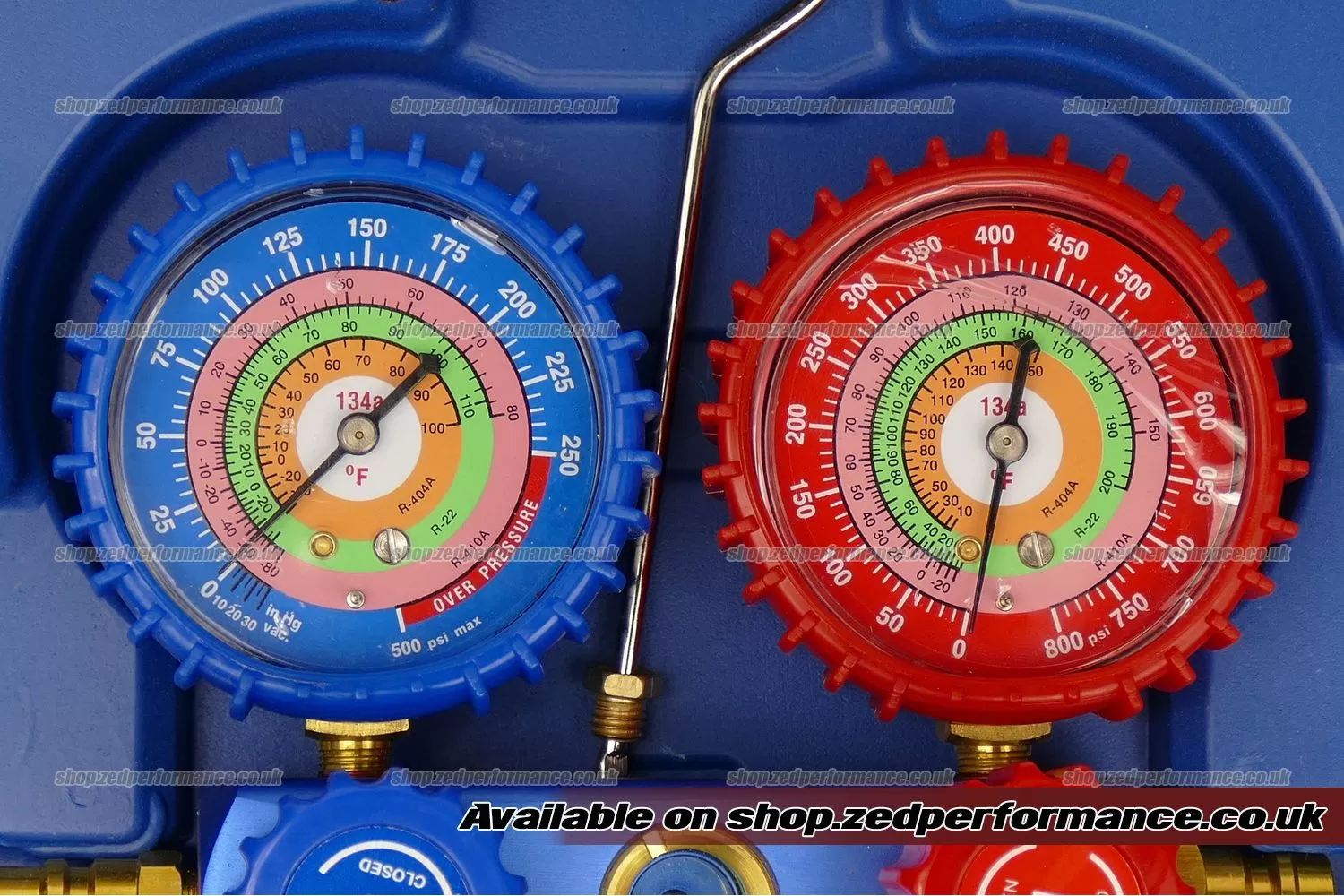

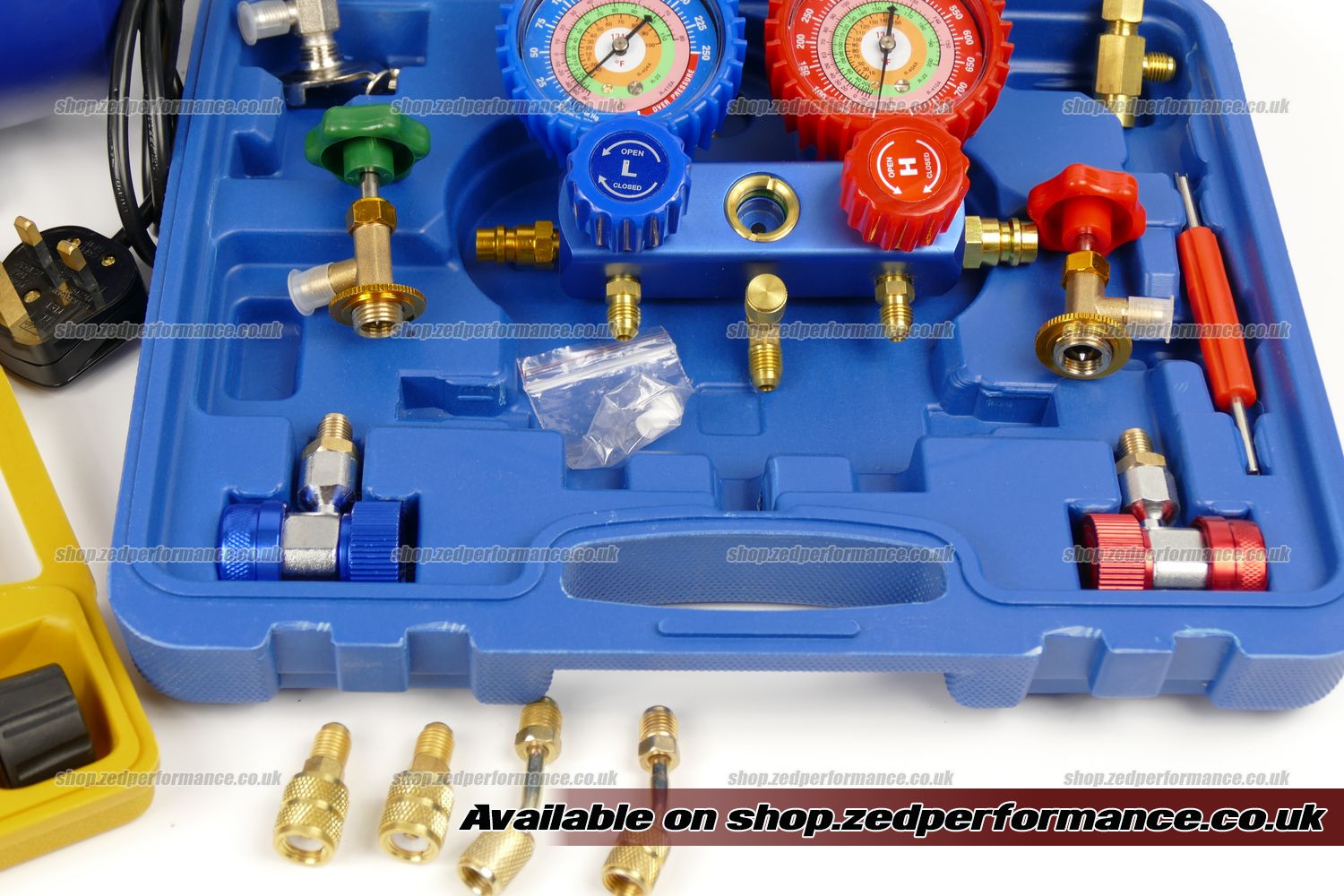

**Refrigeration manifolds CT-MC236
**2 way valves aluminium alloy manifolds with sight glass
**3pcs charging hoses with 1/4" SAE
**Length of charging hoses is 1.75 meter.
**for Refrigerant R134a equipped with QC-19L & QC-19H quick adaptors
**Portable plastic case packed
**Valve removal tool
**No English user manual included
+ R22 Imperial adaptor
+ R22 Metric adaptor
+ 2pc of R410a adaptor
+ All canister tap valve (silver color) (It can also be used for R600a canisters)
+ 7/16" R600a tap valve (red color - please make sure that your canister has 7/16" thread on the canister)
+ M14 R134a tap valve (green color)
+ 1/2" to 1/4" ACME flare tap valve (gold color)
+

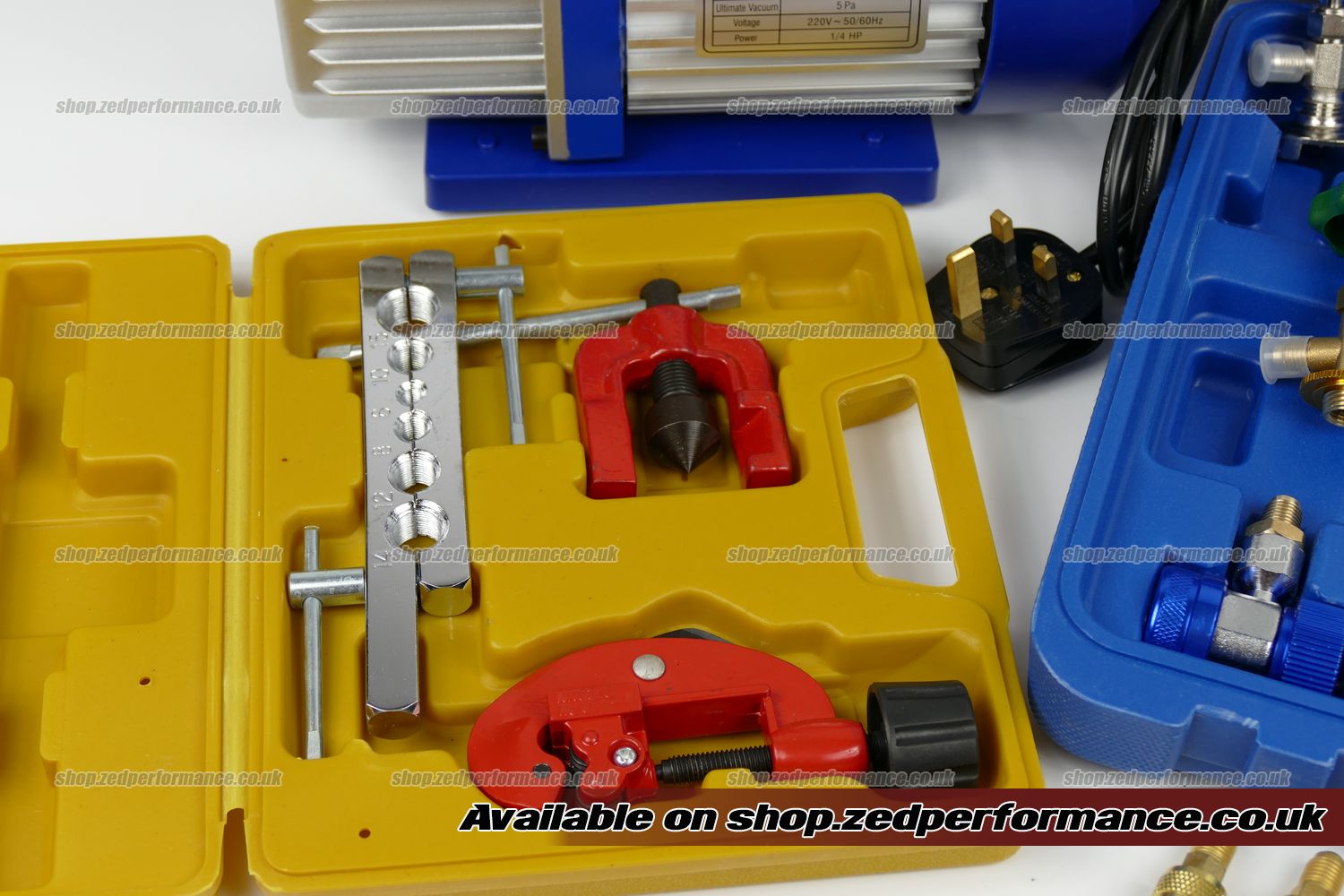

Mini flaring tool kit in plastic case. (NOT ECCENTRIC!)
The clamp can handle 6 different tube sizes.
For tubes 6mm, 8mm, 10mm, 12mm, 14mm and 15mm.
Included:
+Tube cutter from 3 to 28mm
+
AC Rotary vane vacuum pump to purge your AC system.
High Efficiency and Low Noise
Heavy-duty Aluminum Alloy Casing
With Oil Drain Plug Positioned at Bottom of Oil Reservoir
Internal High Volume Cooling Fan For Extended Use
Exhaust Port with Exhaust Cap
Direct Drive Motor Allowing Easy Starting and is Maintenance Free
Oil Sight Glass For Monitoring Oil Levels
ON/OFF Switch
Non Slip Cushion Handle
1 bottle if compressor oil is included.
SPECS:
Voltage /Frequency: 220V-240V/60HZ
UK plug
Flow Rate: 51 L/MIN (1.8 CFM)
Ultimate Vacuum: 5 Pa (0.05mbar)
RPM: 1400 RPM
Power: 1/4HP
Oil Capacity: 300 ml
Dimension: 10 1/2" x 4 1/2" x 8 1/2
1 year warranty.
When you receive the kit please fill it with vacuum pump oil first and DO NOT run dry!
