This is our newly matched aircon charging tool kit which contains all essential to be able to maintain your R32, R290, R134a or R600a air conditioning unit. You may find yourself in difficult situation when your AC unit doesn't work properly and needs a recharge. Due to phase out older HFC gases cannot be purchased or at a really high price. Older air conditioning units can heat pump can also be replaced with other better and cheaper substitutes.
If you decide to go and use substitutes with lower GWP  you will need to have the correct charging gauges and fittings.

This tool kit has the required fittings and adaptors to connect commonly used refrigerants.
It also has the R32 bottle adaptor to connect to 1/4" flare hoses and charging gauges. This R32 bottle adaptor will fit all other "A-gas" flammable gases range bottle. These R32 cylinders are fitted with a left handed DIN 477-1 valve.
Our adaptor will fit these cylinders but these standards are used in Europe as well.

R32 refrigerant are commonly used as a substitute for R410A.
New air conditioning units filled with R410a can be replaced with R32 which has low GWP of 675. (Just 32% of R410A)

R32 and R290 now are widely used in newer A/C systems, heat pumps and split AC units.

Please note that this recharge & maintenance tool kit is designed to connect and use with all split AC units! (Including LG split ac unit, Daikin R32 (Ururu Sarara and other units..))

Features:

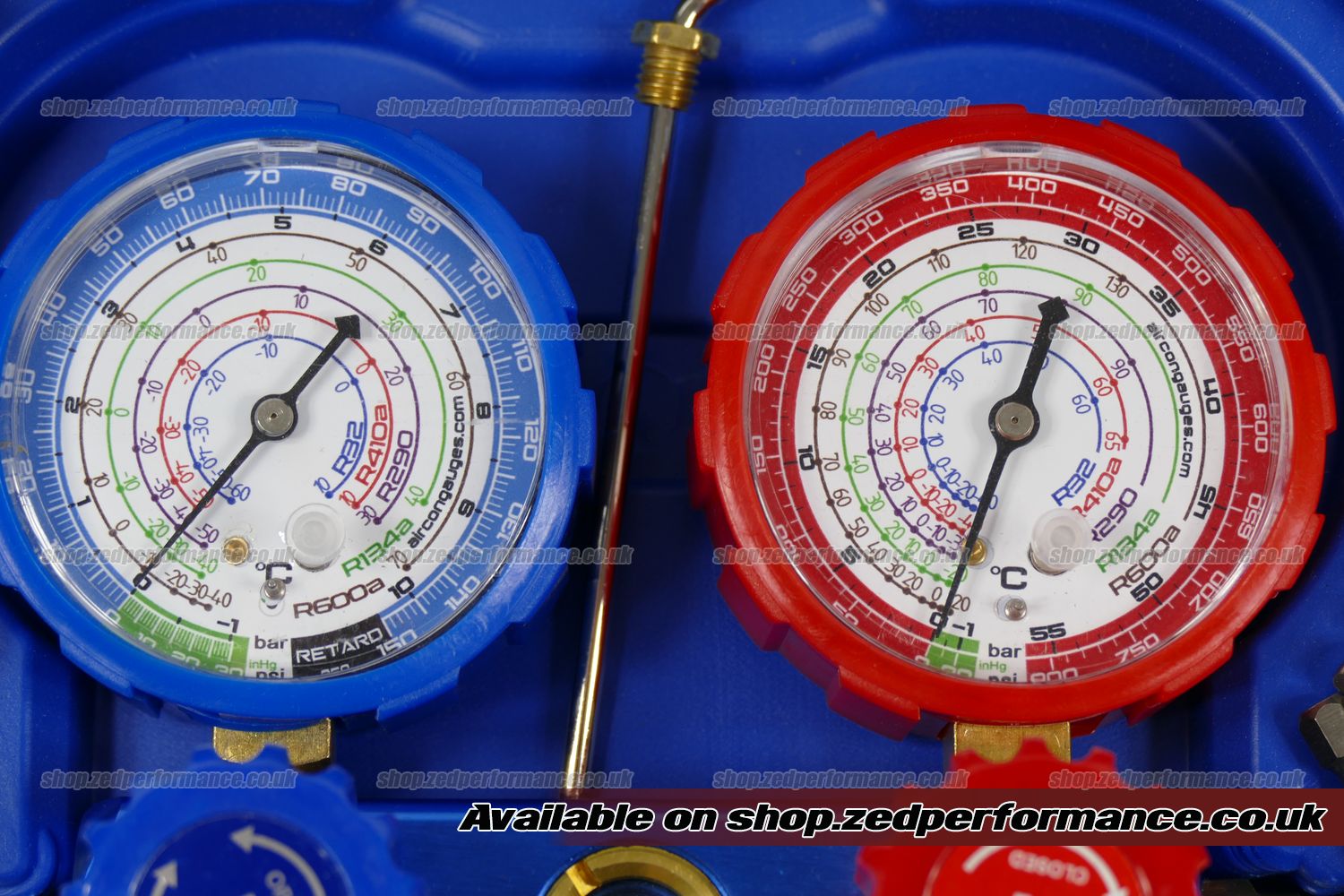

* The gauge scale is for R410a, R134a, R290, R32, R600a refrigerants.
* Incredible 70inch long hose.

The AC gauges show R600a markings (temp chart) to be able to recharge your fridge freezer.

**Refrigeration manifolds. (Made in EU)
**2 way valves aluminium alloy manifolds with sight glass
**3pcs color coded charging hoses with 1/4" flare female ends.
**R410a and R32 service port fittings are provided.
**We also provide you with R134a high and low side connectors for automotive air con recharging. (These R134a automotive couplers CANNOT BE used on domestic fridges and freezers!)
**Schrader valve core remover tool

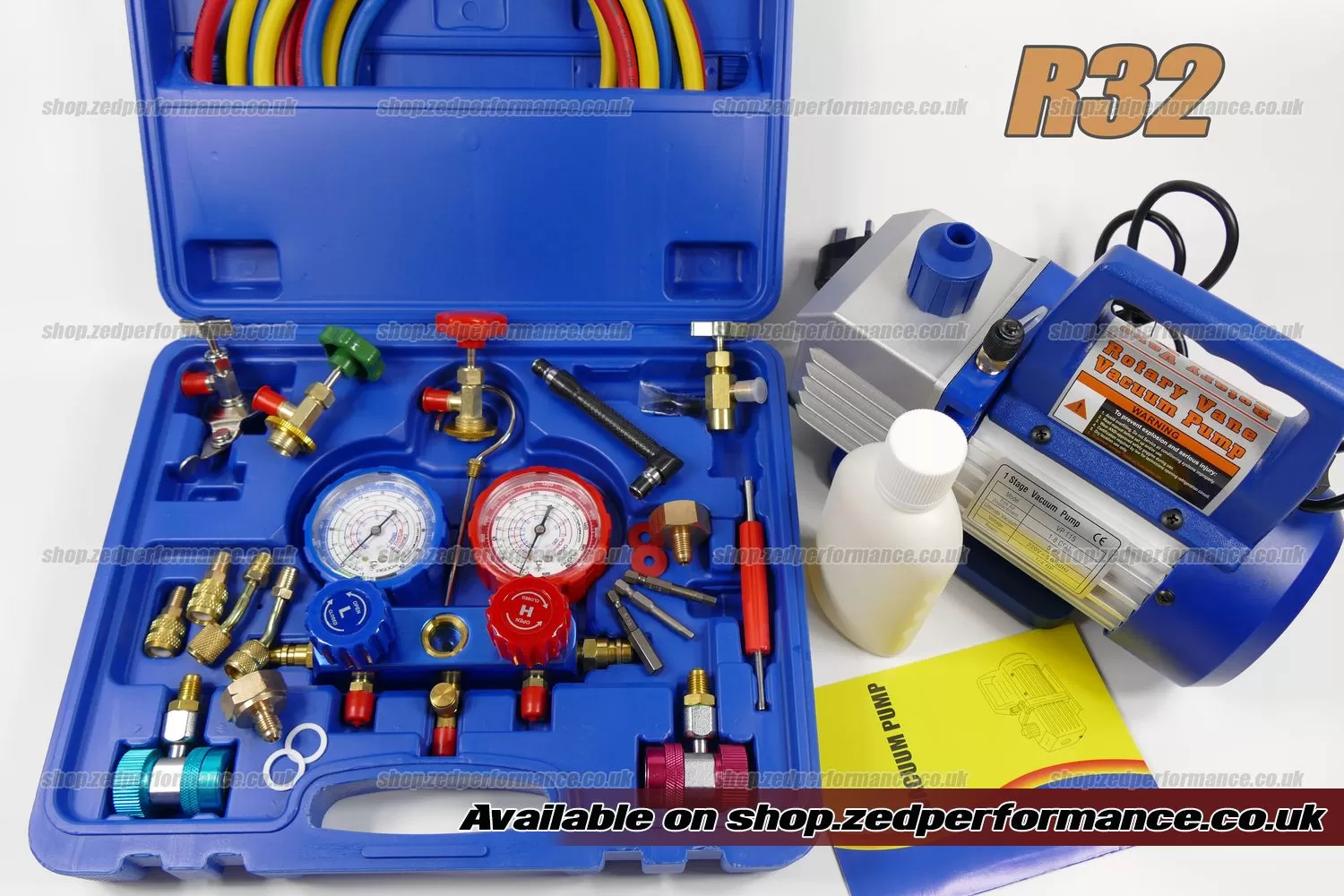

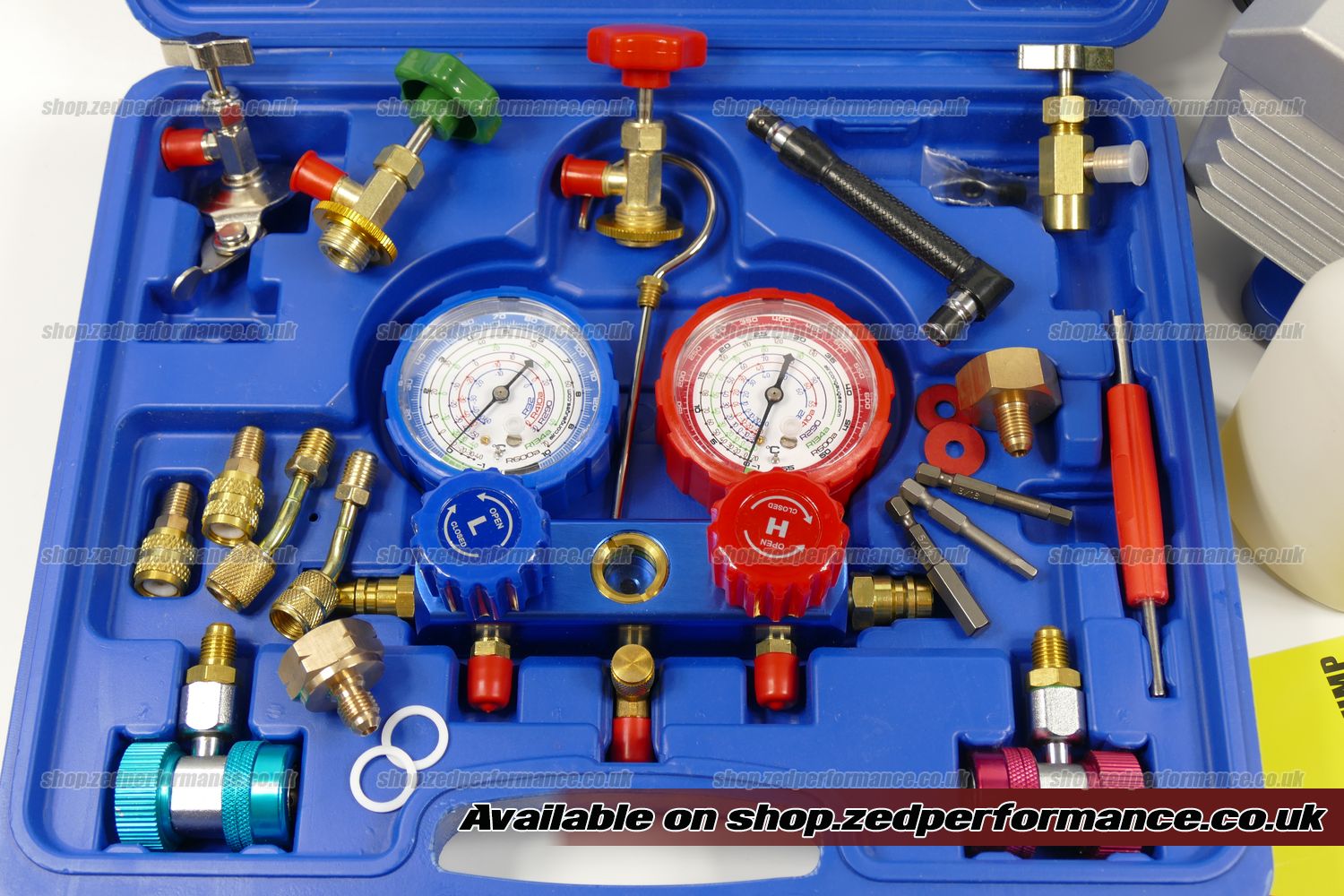

This AC charging tool set includes:

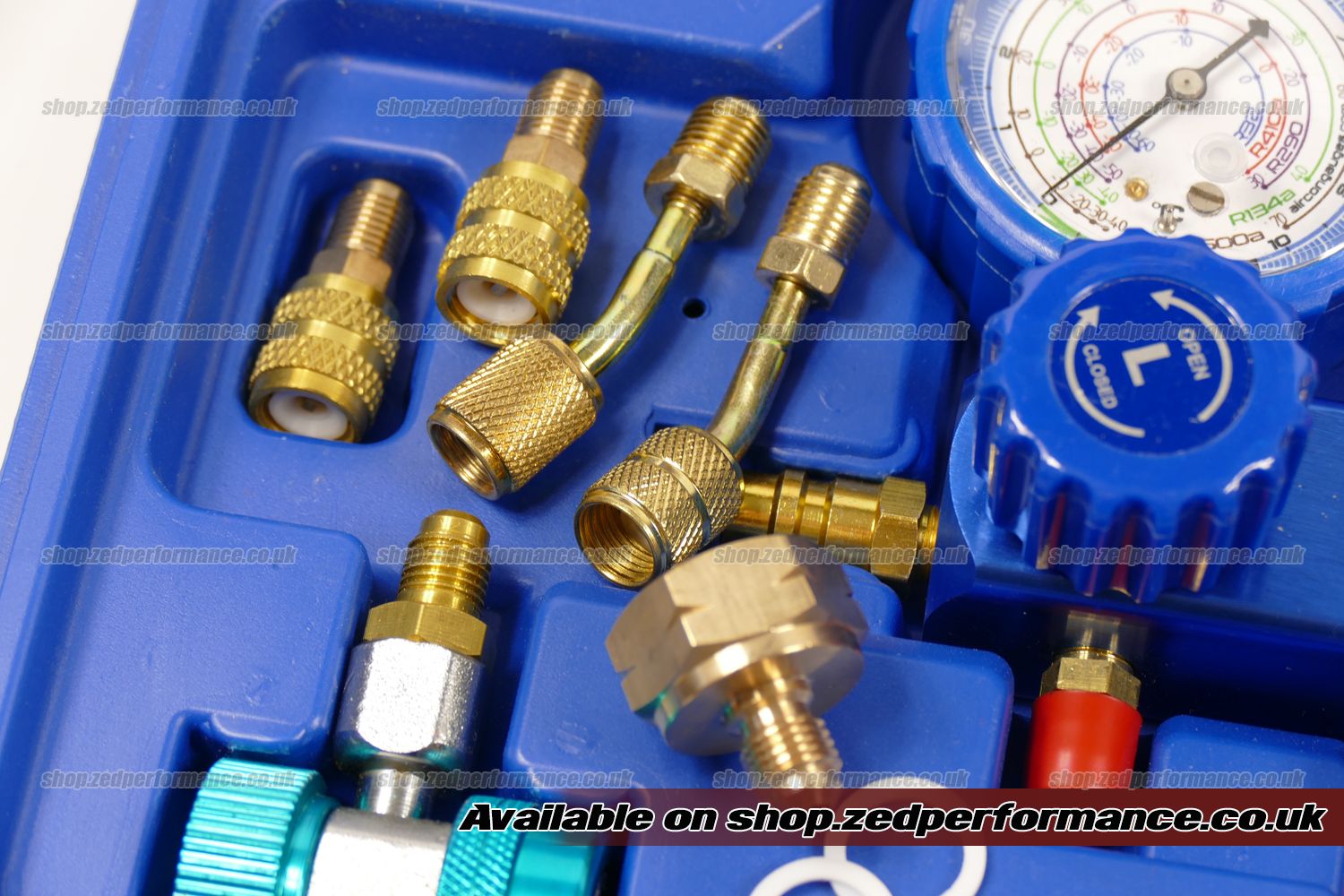

+ R22 Imperial fitting (makes it easy to connect and recharge older R22 units with other substitutes)
+ R22 Metric fitting
+ R410a fitting
+ R32 fitting
(These fittings above to be used to connect to service port of aircon systems and heat pump units)

+ All canister tap valve (silver color) (It can also be used for R600a canisters)
+ 7/16" R600a tap valve (red color - please make sure that your canister has 7/16" thread)
+ M14 R134a tap valve (green color)
+ 1/2" to 1/4" ACME flare tap valve (gold color)
+ R32 cylinder to 1/4" flare male adaptor (Fits R32, R1234yf, R600a cylinders)
+ Universal (non-flammable) refrigerant cylinder to 1/4" flare male adaptor. (Fits most non-flammable refrigerant cylinders.)
+ Square wrench tool to open and close most service valves. (1/4", 3/8", 3/16" and 5/16")

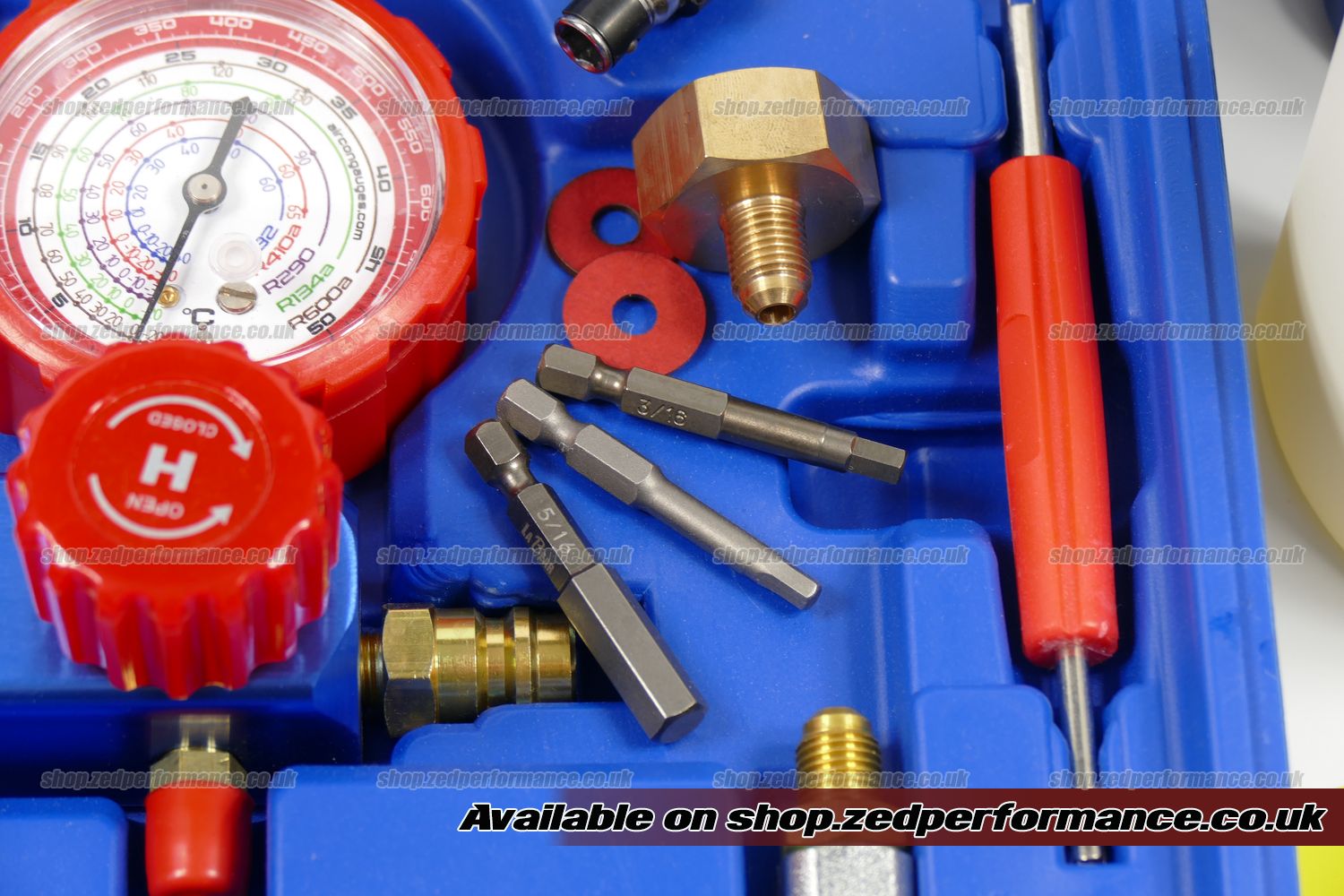

+ 3pcs of hex bit (3/16", 5/16" and 4mm) It also includes a hexagon ratchet wrench. (In our pic we show a non-retched wrench but You'll receive a ratchet type wrench.)

+

Rotary vane vacuum pump for professional or DIY use.

1 bottle compressor oil is included.

SPECS:

Voltage /Frequency: 220V-240V/60HZ
UK plug!

When you receive the kit please fill it with vacuum pump oil first and DO NOT run dry!

Shut Off valve option:

Vacuum pump with solenoid fitted option:
