Air conditioner recharge tool kit

Air Conditioner Recharge Tool Kit with Vacuum Pump and Scales

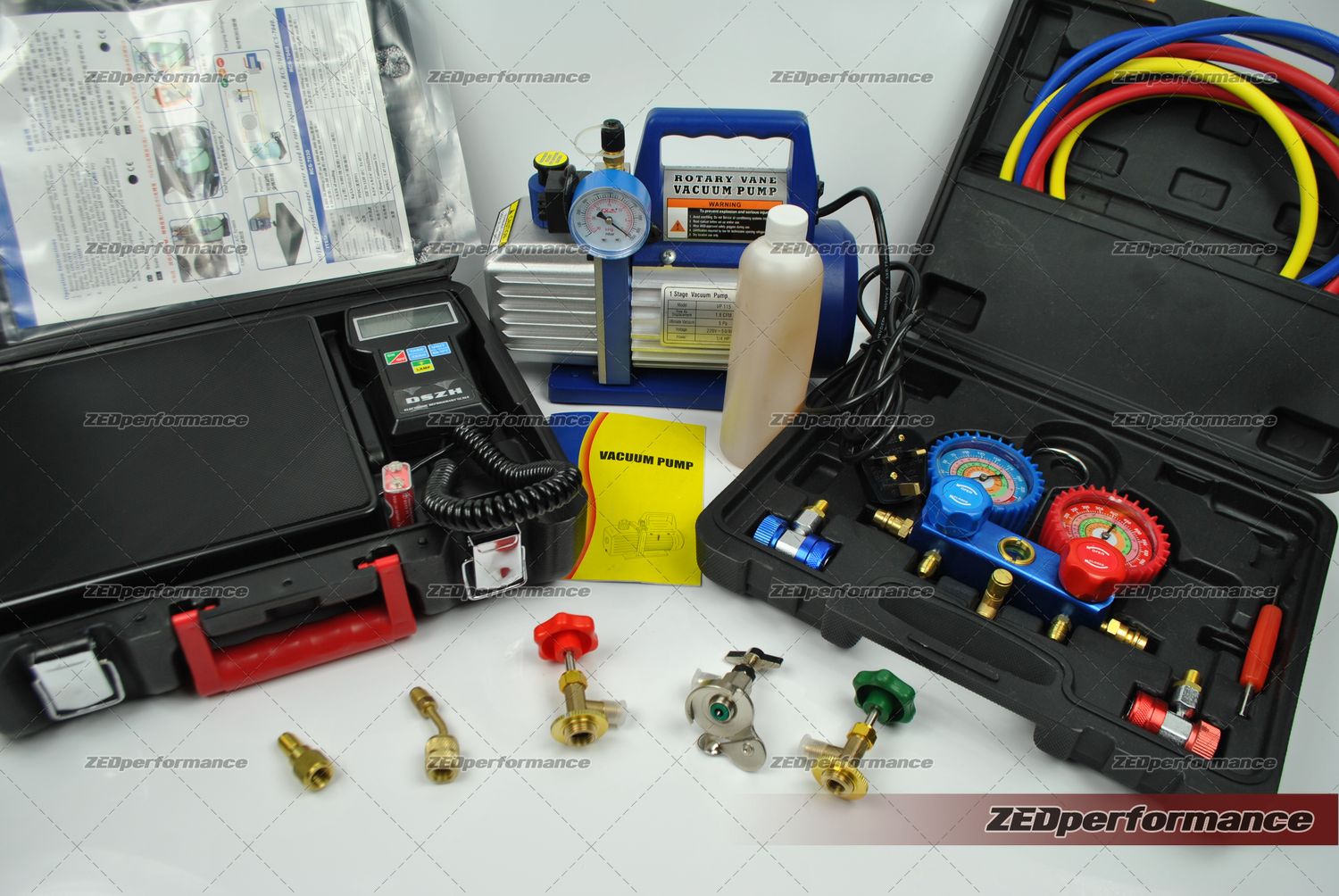

This AC recharge tool kit includes a double-gauge manifold, a rotary vane vacuum pump and 100 kg refrigerant charging scales. The vacuum pump is supplied with a mechanical vacuum gauge and solenoid fitted.

AC Manifold and Charging Hoses

• Manifold model: CT-MC236

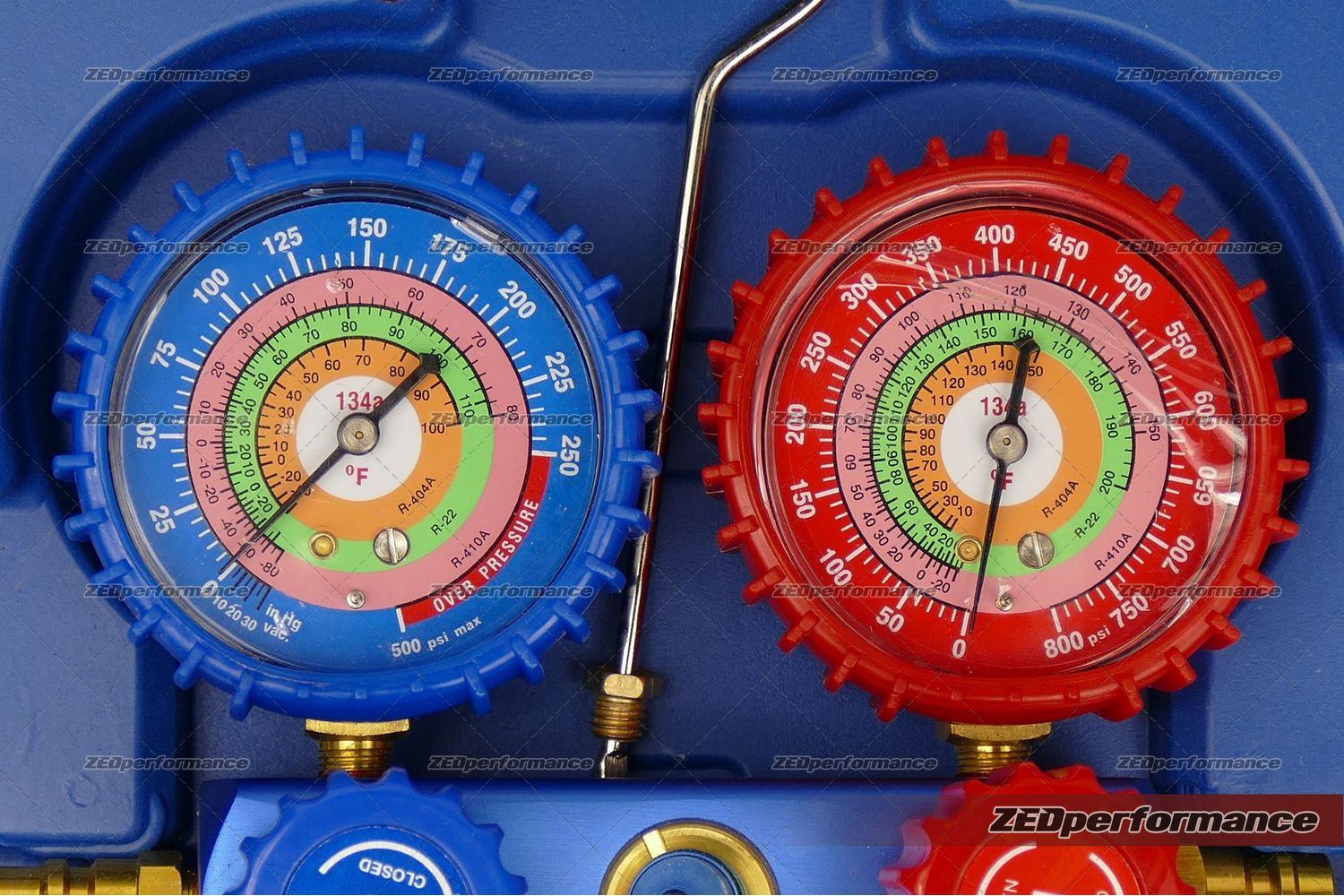

• Gauge scales marked for R134a, R22, R410a and R404a refrigerants
• Two-valve aluminium alloy manifold with sight glass
• Three charging hoses with 1/4" SAE connections
• Charging hose length: approximately 1.75 metres
• QC-19L and QC-19H quick couplers for the low- and high-pressure service ports on R134a car air conditioning systems
• Portable plastic carrying case
• Schrader valve core removal tool

No English user manual is included. Please watch the tutorial video at the bottom of this description.

Included Adaptors and Can Tap Valves

• R22 imperial adaptor
• R22 metric adaptor
• Two R410a adaptors
• Universal can tap valve in silver. This can also be used with compatible R600a canisters.
• 7/16" R600a can tap valve in red. Check that your canister has a 7/16" thread.
• M14 R134a can tap valve in green
• 1/2" to 1/4" tap valve for R134a bottles in gold

Checking Whether Your AC System Holds a Vacuum

After evacuating the air conditioning system, isolate the vacuum pump and monitor the system vacuum. A loss of vacuum during a 30-minute hold test may indicate a leak. Follow the system manufacturer's requirements for the vacuum level and test duration.

Check the hoses, connections and Schrader valves before assuming the leak is elsewhere in the system. A leaking Schrader valve may need replacing. We also sell leak detectors in our online store to help locate refrigerant leaks.

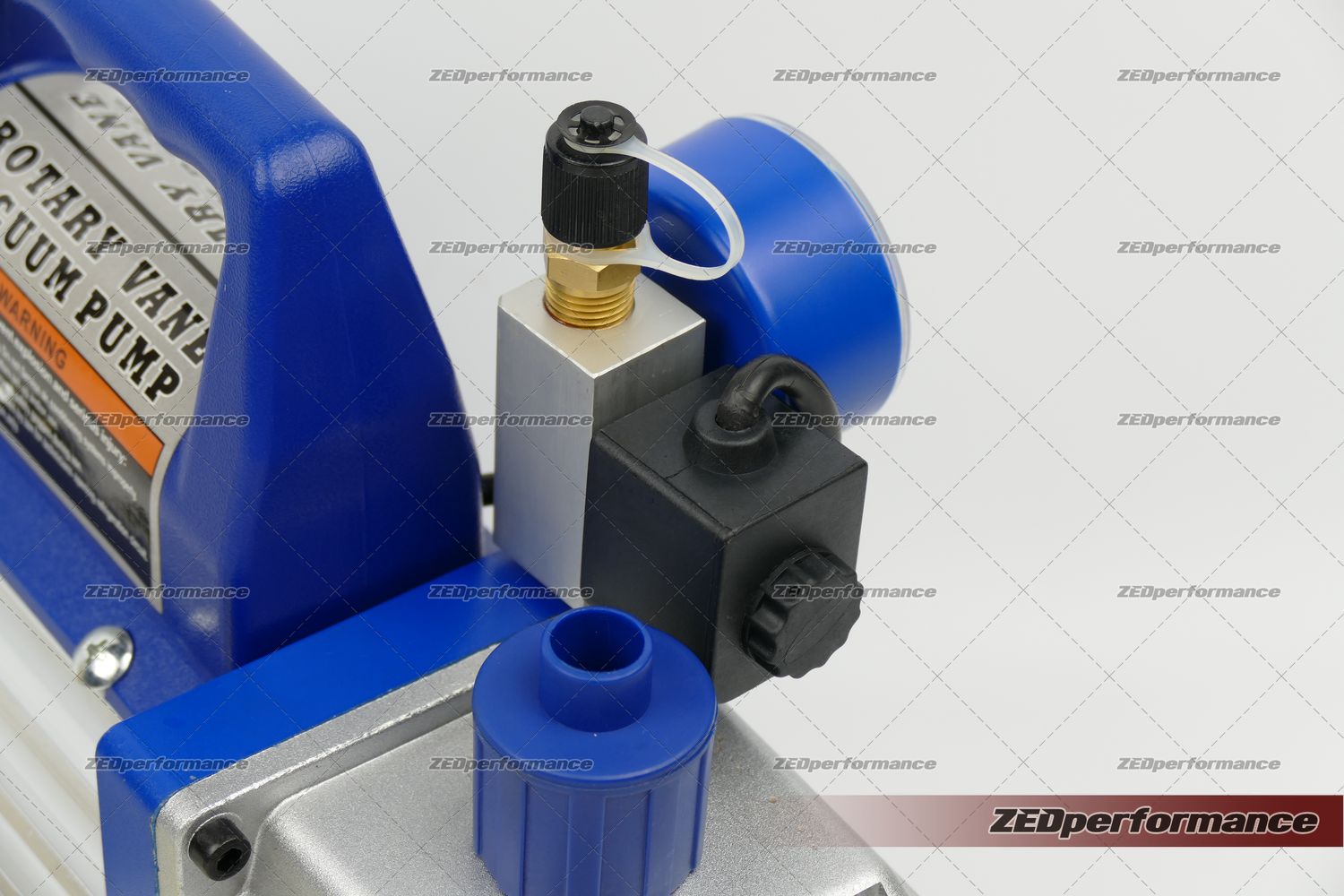

The fitted solenoid closes the vacuum line between the pump and the vacuum gauge when the pump is switched off. This allows the gauge to remain connected to the system while the pump is isolated.

Mechanical and Digital Vacuum Gauges

The included mechanical vacuum gauge provides a simple indication of the vacuum level. A digital micron gauge provides finer measurements when checking a deep vacuum. Oil and other contaminants can affect digital vacuum sensors, so keep the sensor clean and follow the gauge manufacturer's instructions.

+

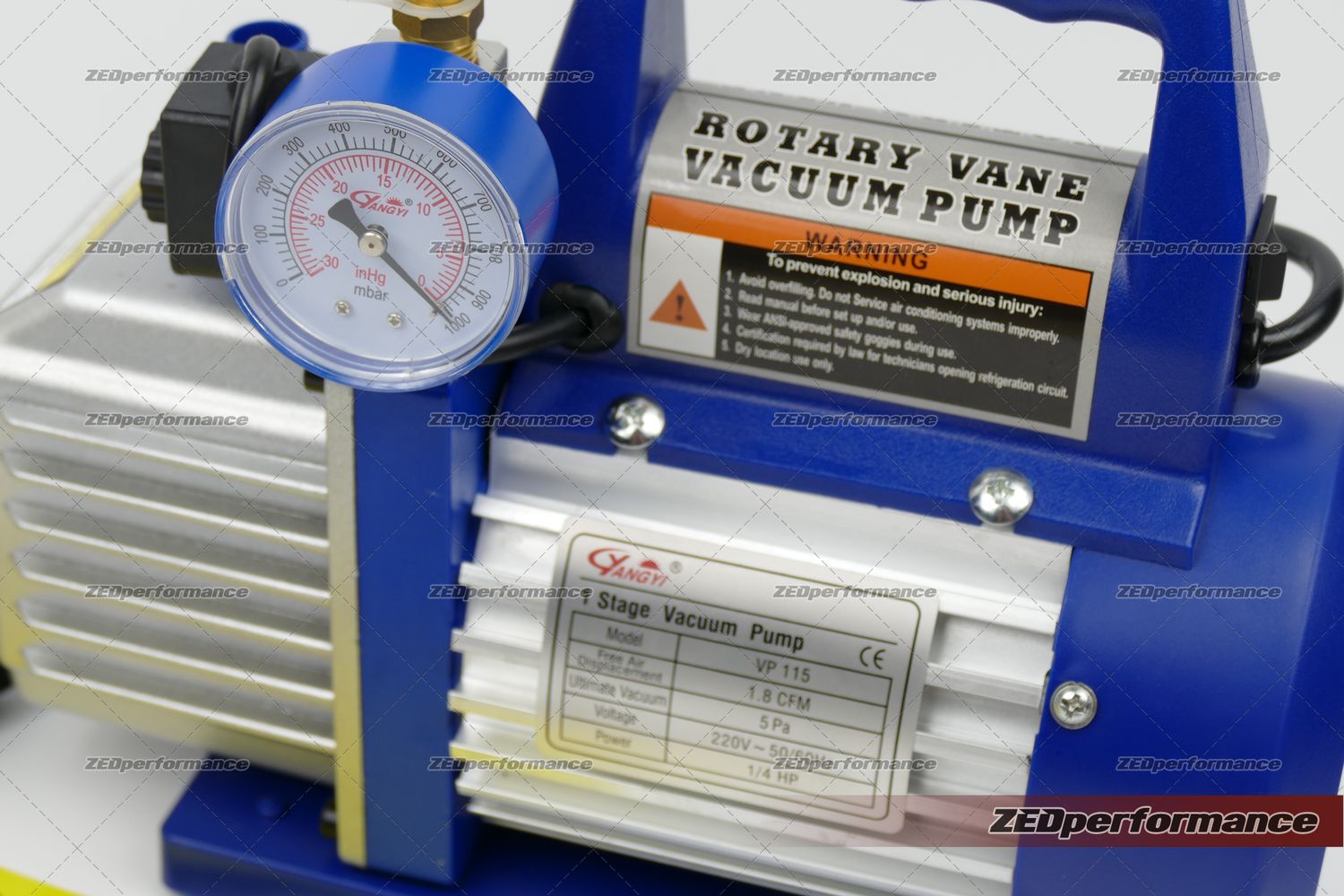

Rotary Vane Vacuum Pump with Gauge and Solenoid

The supplied vacuum pump has a vacuum gauge and solenoid fitted. One bottle of vacuum pump oil is included.

Vacuum Pump Features

• High efficiency and low noise
• Heavy-duty aluminium alloy casing
• Oil drain plug at the bottom of the oil reservoir
• Internal high-volume cooling fan for extended use
• Exhaust port with cap
• Direct-drive motor for easy starting
• Oil sight glass for monitoring the oil level
• On/off switch
• Non-slip cushioned handle

Vacuum Pump Specifications

• Voltage / frequency: 220–240 V / 50 Hz
• Plug: UK plug
• Flow rate: 51 litres per minute (1.8 CFM)
• Ultimate vacuum: 5 Pa (0.05 mbar)
• Speed: 1,400 rpm
• Power: 1/4 HP
• Oil capacity: 300 ml
• Dimensions: 10.5" × 4.5" × 8.5"
• Warranty: 1 year

Fill the pump with vacuum pump oil before first use. DO NOT run the pump dry.

+

100 kg Refrigerant Charging Scales

The RCS series refrigerant scales can be used to weigh refrigerant during charging and recovery work on commercial air conditioning and automotive AC systems.

• Maximum capacity: 100 kg (220 lb)
• Accuracy: ±5 g (approximately 0.01 lb)
• High-visibility LCD display
• Flexible coiled cable approximately 1.83 metres (6 feet) long
• Powered by a long-life 9 V battery
• Portable carrying case
