R410a R32 HVAC aircon tool kit
- £499.99
- Brand: Aftermarket
- Product Code: hvac-aircon-tools
- Availability: In Stock
Available Options
Qty + -
This is currently our most advanced HVAC aircon tool kit we can offer for Domestic and commercial AC & heat-pump maintenance. Please take your time and check all pictures before you place your order. If you miss anything you just need to contact us and we can add or remove any product from this bundle. This bundle is best to use with R410a, R32 and R134a AC units but not limited to.
Please note that we have a base price for a set of tools. Firstly we list of the tools & parts which are covered by our base price shown above. You can add or remove (configure) additional tools of the bundle with the ticking options show above ADD TO CART button. Our main picture shows the base bundle. Other additional options AT EXTRA COST are in the bottom of this listing marked as OPTIONAL. You only get these optional tools if you added (ticked) the box above ADD TO CART button.

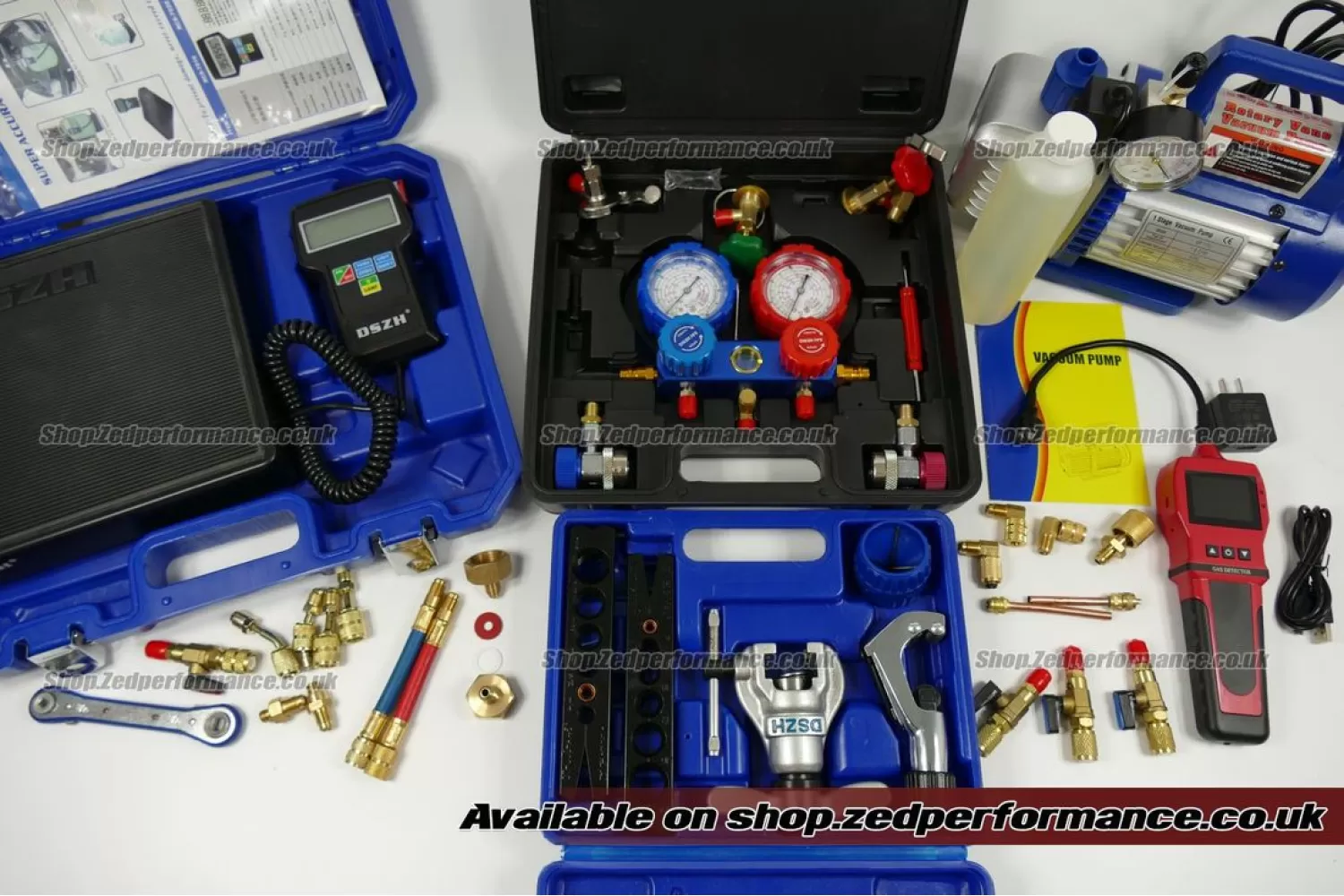

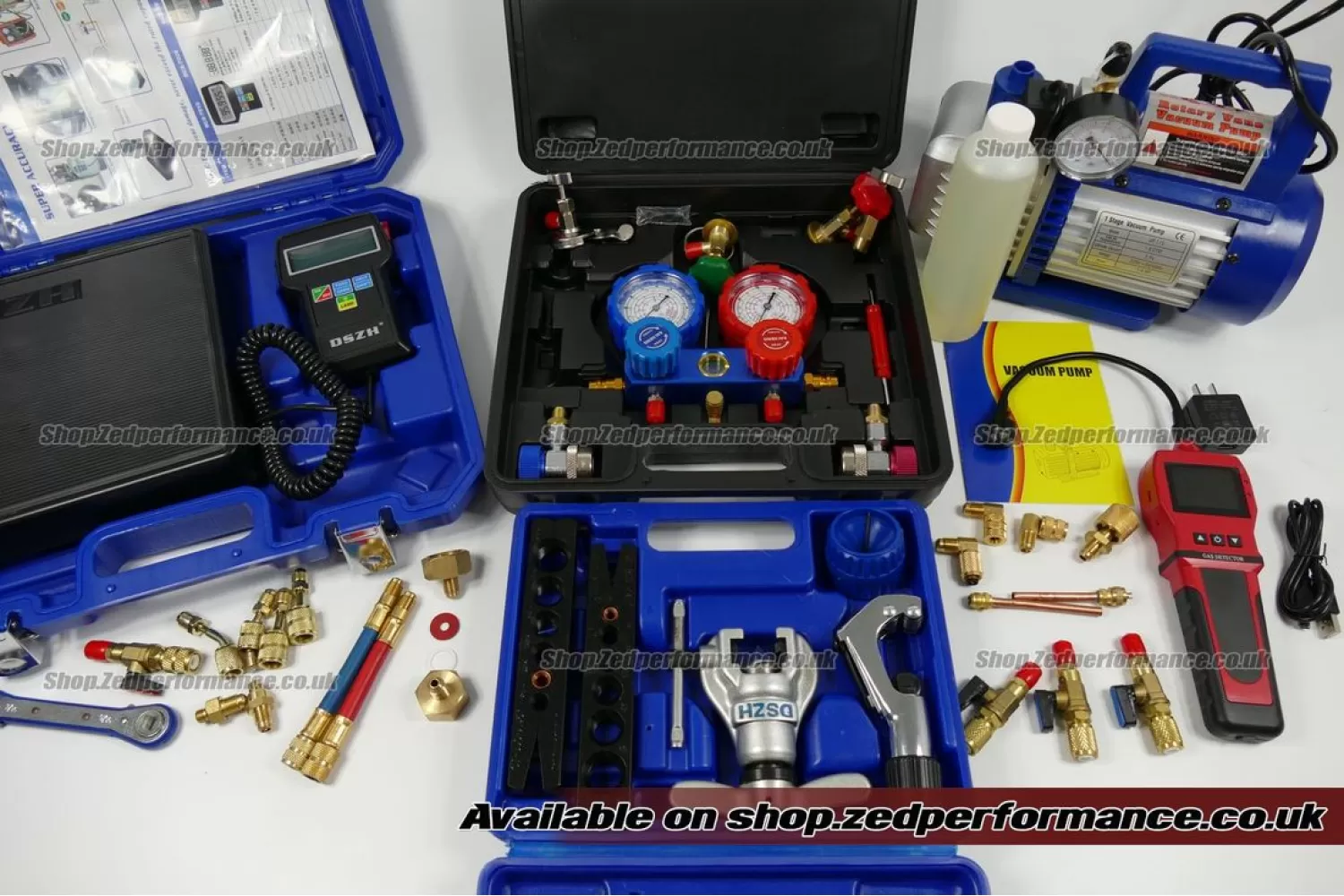

BASE PRICE INCLUDES:

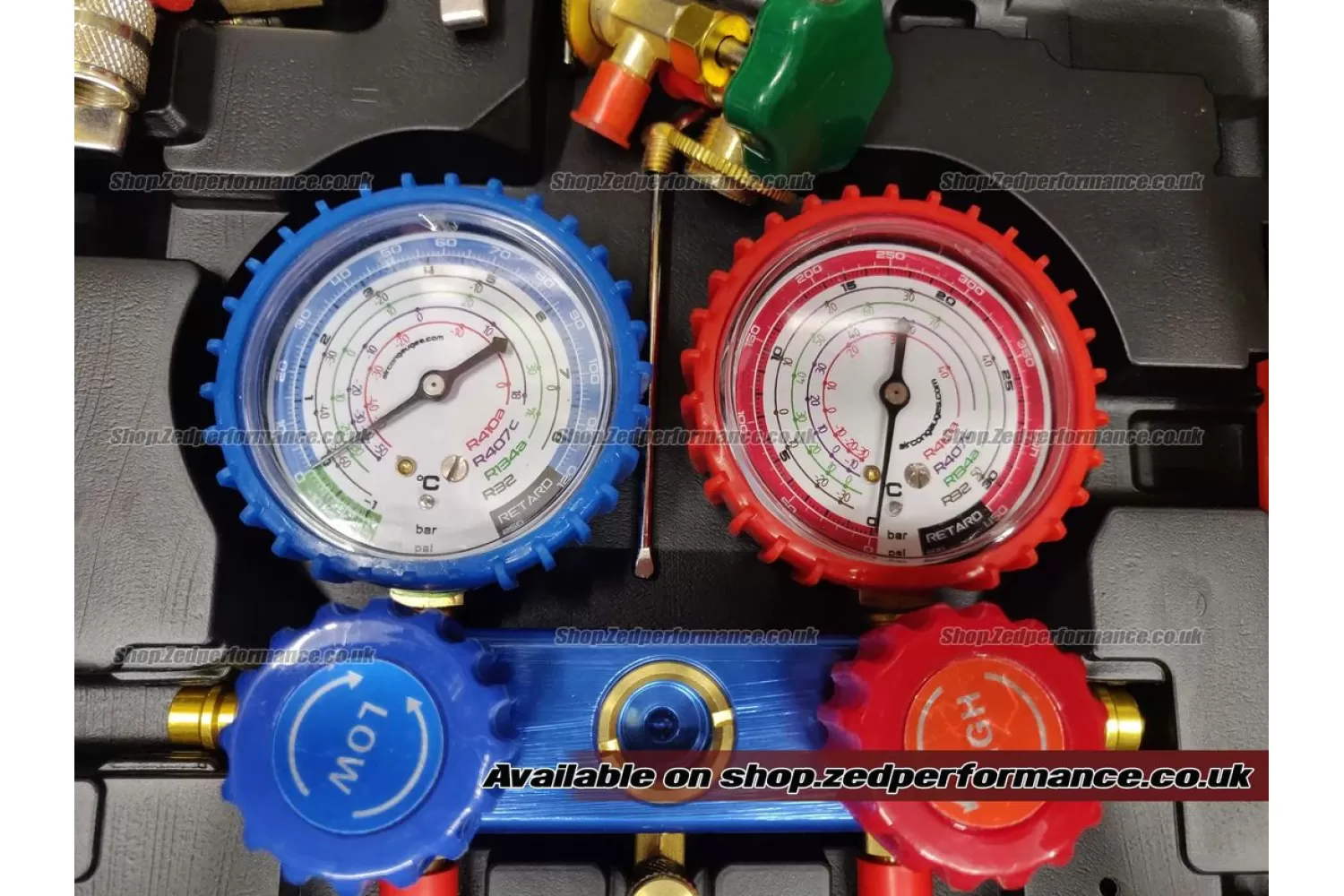

1ST - GAUGE KIT
1ST - GAUGE KIT
* The AC gauge scale is for R134a, R32, R410a and R407c gases.
* Incredible 70inch (1.75 meter) long HVAC hose.
**Aircon manifolds with R32, R134a, R410a gauge scales. It is ideal to use with domestic AC and heatpump units.
**2 way valves aluminium alloy manifolds with sight glass
**3pcs charging hoses with 1/4" SAE
**Length of charging hoses are 1.75 meter.
**Although it is a domestic AC tool kit the set includes automotive quick coupler to connect to high and low side ports.
**Portable plastic case packed
**Valve removal tool
**No English user manual included. (If you purchase this kit we expect you to be HVAC technician or trained car mechanic who know how to use these tools and recharge an air conditioning system.)
+ R22 Imperial adapter for older AC units
+ R22 Metric adapter
+ 1pcs of R410a service port adapter
+ 1pcs of R32 service port adapter
+ All canister tap valve (silver color) (It can also be used for R600a canisters) The tap valves will be able to open any types of canisters.
+ 7/16" R600a tap valve (red color - please make sure that your canister has 7/16" thread on the canister)
+ M14 R134a tap valve (green color)
+ 1/2" to 1/4" tap valve for R134a bottles (gold color)
+ BOC R134a cylinder fitting with 1/4" flare end.
+ BOC R32 cylinder adaptor with 1/4" flare end
+ 3pcs of 1/4" Shut-Off valve
+ 1pc of 5/16" R32 Shut-Off valve
+ BOC R32 cylinder adaptor with 1/4" flare end
+ 3pcs of 1/4" Shut-Off valve
+ 1pc of 5/16" R32 Shut-Off valve
+
2ND - 45º ECCENTRIC FLARING TOOL KITThe flaring tool tube clamp can handle 12 different tube sizes.
For tubes 1/4", 5/16", 3/8", 1/2", 5/8", 3/4" and 6mm, 8mm, 10mm, 12mm, 16mm and 19mm.
Easy operation, save time and energy. The special cone eccentric revolution will be allows the internal opening gradually and form 45º accurate and regular flare without, preventing tube slippage downward. Therefore, the flare face will be smooth, uniform without scratching.
Eccentric cone will be rebound by itself after the work is finished,make the idle top head in revolution again for 1-2 rounds and have the flare face in friction to make it prettier.
Included:
+CT274 - tube cutter for 1/8" to 1-1/8" (from 4 to 28mm)
+BT208 - Inner-Outer Reamer from 3/16" to 1-1/2" (up to 40mm inner diameter).
+Capillary tube cutter pliers.
+
3RD - FITTINGS & ADAPTORS & VALVES* 2pcs of solderable access valve with 1/4" flare Schrader valve end.
* Square ratchet wrench for size: 1/4", 3/8", 3/16" and 5/16"
+ Various tools, fittings, adaptors
+ Manual valve with 1/4" Male flare and 1/4" Female flare end
+
4TH VACUUM PUMP
Rotary vane vacuum pump. WITH VACUUM GAUGE AND SOLENOID FITTED. Easier track of leakage.
High Efficiency and Low Noise
Heavy-duty Aluminium Alloy Casing
With Oil Drain Plug Positioned at Bottom of Oil Reservoir
Internal High Volume Cooling Fan For Extended Use
Exhaust Port with Exhaust Cap
Direct Drive Motor Allowing Easy Starting and is Maintenance Free
Oil Sight Glass For Monitoring Oil Levels
ON/OFF Switch
Non Slip Cushion Handle
1 bottle if compressor oil is included.
This HVAC vacuum pump is also fitted with electronic solenoid valve which is normally closed. If opens when you switch the HVAC pump on and closes when your turn off the pump. The solenoid seals the port and shows the vacuum inside the R134a aircon system. It gives an easy way to detect any leak in the line. If the vacuum drops then it will be noticeable on the gauge's scale.
SPECS:
Voltage /Frequency: 220V-240V/60HZ
UK plug
Flow Rate: 51 L/MIN (1.8 CFM)
Ultimate Vacuum: 5 Pa (0.05mbar)
RPM: 1400 RPM
Power: 1/4HP
Oil Capacity: 300 ml
Dimension: 10 1/2" x 4 1/2" x 8 1/2
1 year warranty.
When you receive the kit please fill it with vacuum pump oil first and DO NOT run dry!
+

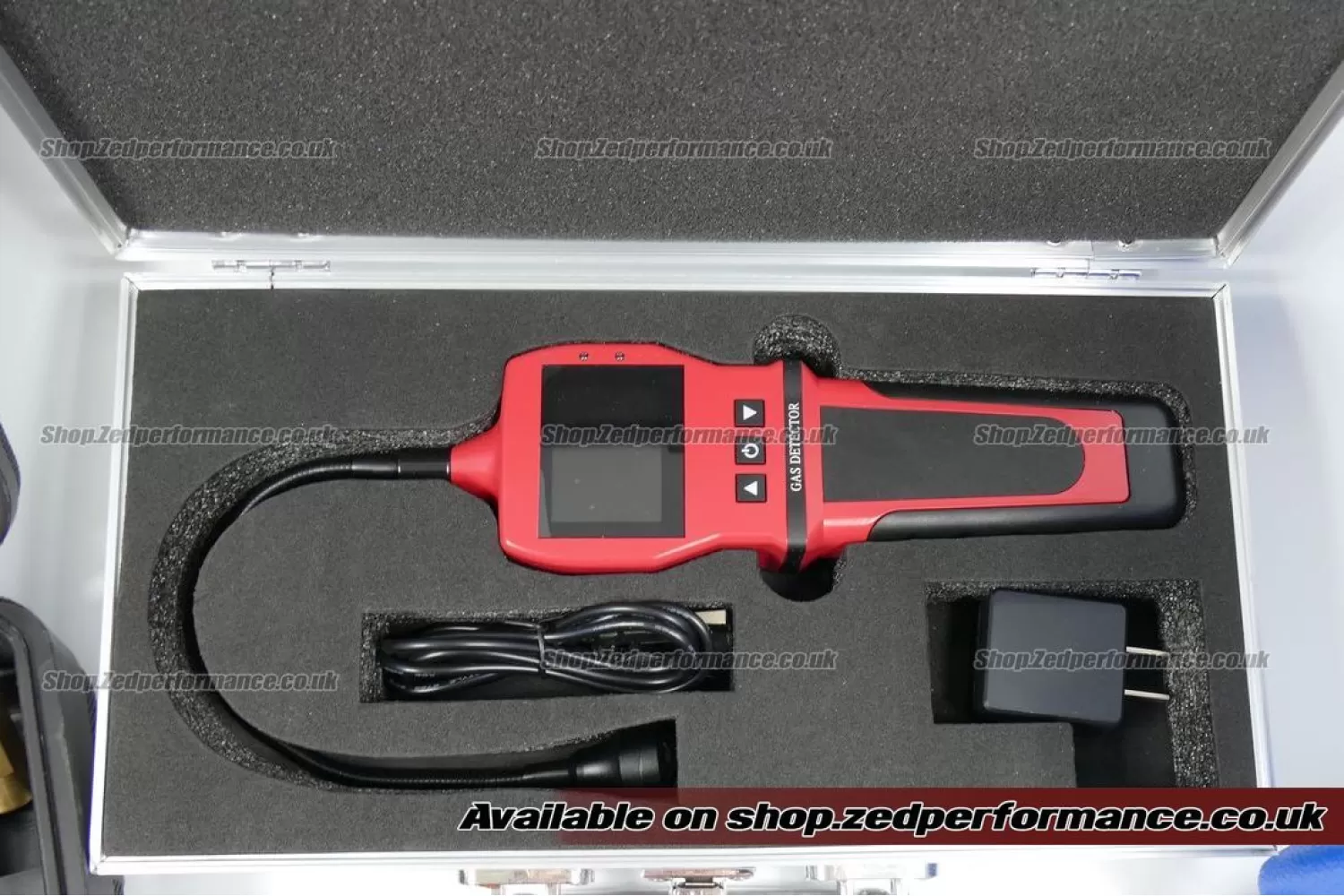

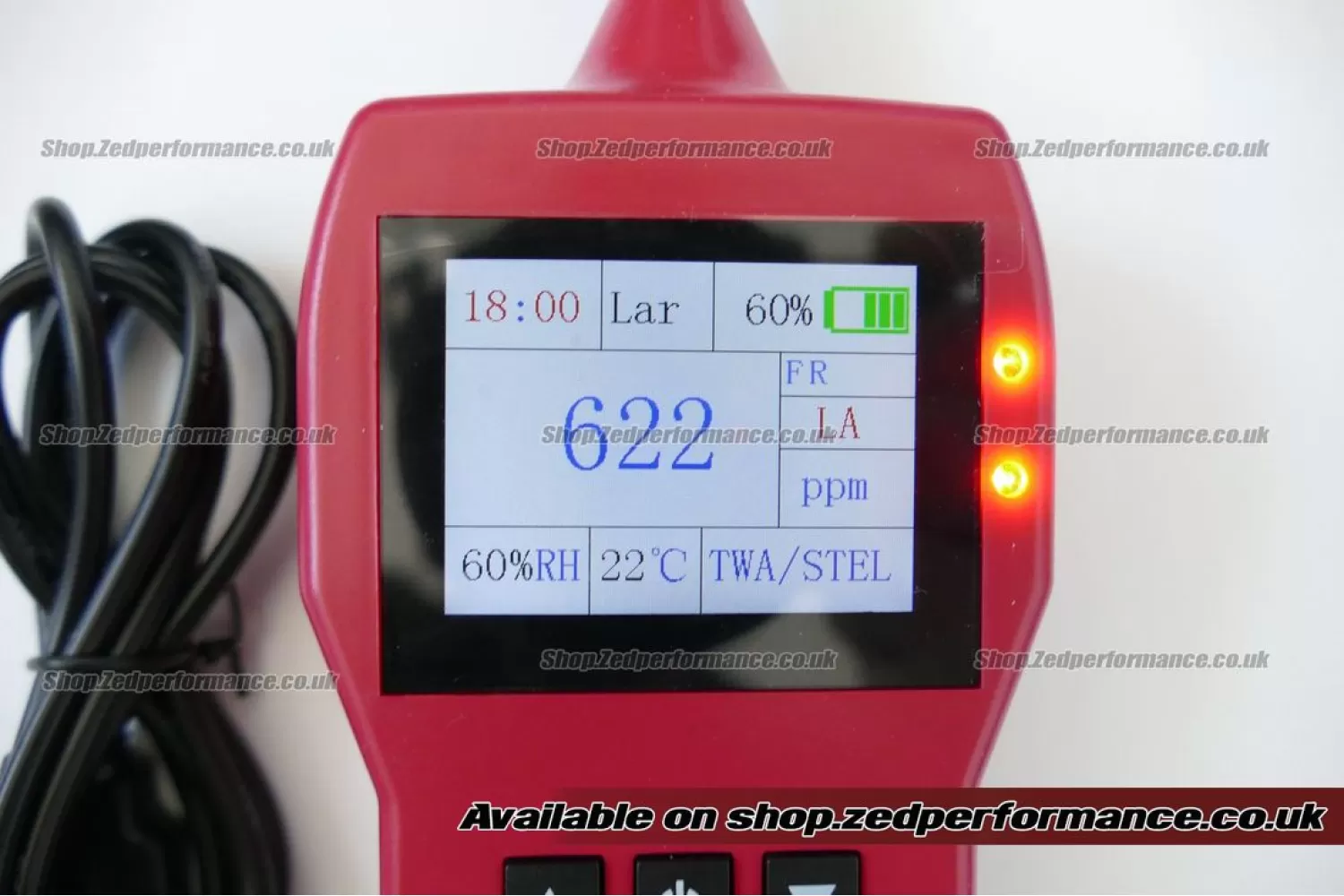

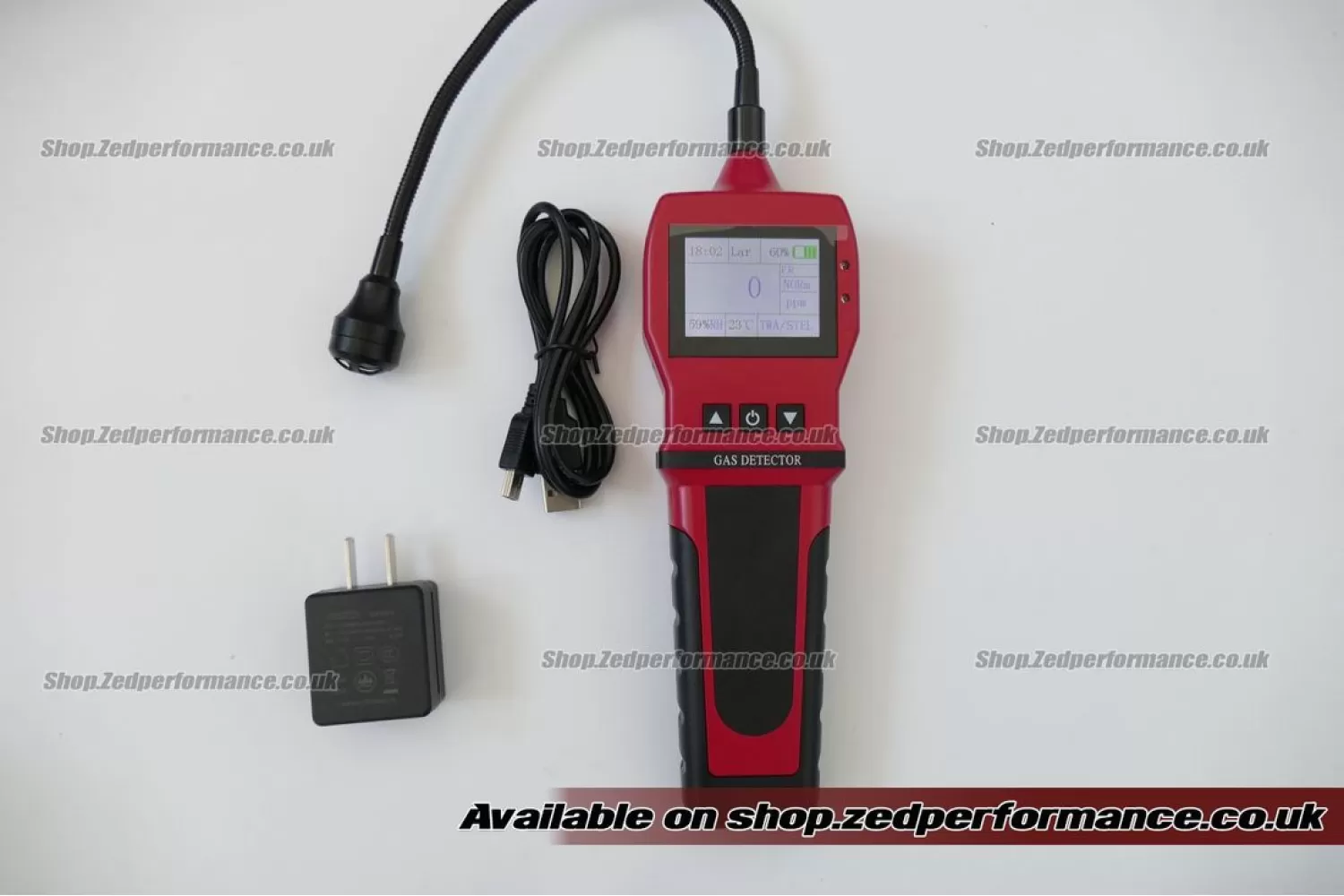

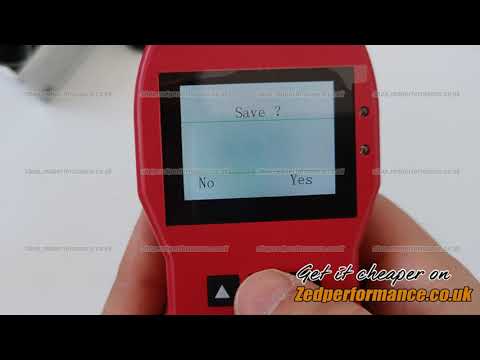

5TH LEAK DETECTOR & REFRIGERANT SNIFFER
AC refrigerant leak detector / sniffer for all HVAC refrigerant freon gases.
* Large LCD display
* 1000ma/h rechargeable battery
* Long cable
* Flexible arm
* Charging cable
* Mains adaptor with US plug
All halogen (including chlorine and fluorine) refrigerants can be detected. Including but not limited to
CFCS eg. R12, R11, R500, R503 etc..
HCFCS eg. R22, R123, R124.R502 etc..
HFCS eg. R134a, R404a, R125 etc..
R32 and R1234yf refrigerant detecting.
R32 and R1234yf refrigerant detecting.
It can also detect other mixtures, such as AZ-50, HP62, MP39, etc ...
Ethylene vapour leak detection hospital sterilising equipment.
+
6TH - 100KG REFRIGERANT CYLINDER CHARGING SCALES
RCS series refrigerant charging scales used for refrigerant charging, recovery & weighing of commercial AC, auto aircon systems.
Portable carrying case with 223cm x 223cm platform. High capacity up to 100kgs (220lbs). High accuracy of +/-5g(0.01b).high-visibility LCD display 66mm x 20mm & 67mm x23mm optional. Felxible 6 inches(1.83m) coil design. Long life 9V battery.
OPTIONAL TOOLS - ONLY IF YOU ADD THEM ABOVE ADD TO CART BUTTON:
OPT 1 - R32 RECOVERY UNIT
REFRIGERANT RECOVERY UNIT for refrigerants Class 3, 4 and 5 including R32 and R1234yf.
Liquid and vapor.
14kg machine with UK mains plug.
