Our price shown above includes our base bundle with all essential AC tools listed below. We also offer several optional bundle upgrades at extra cost. These extra tools are shown in the lower side of the page and can be opted in by ticking the tick boxes above ADD TO CART button.

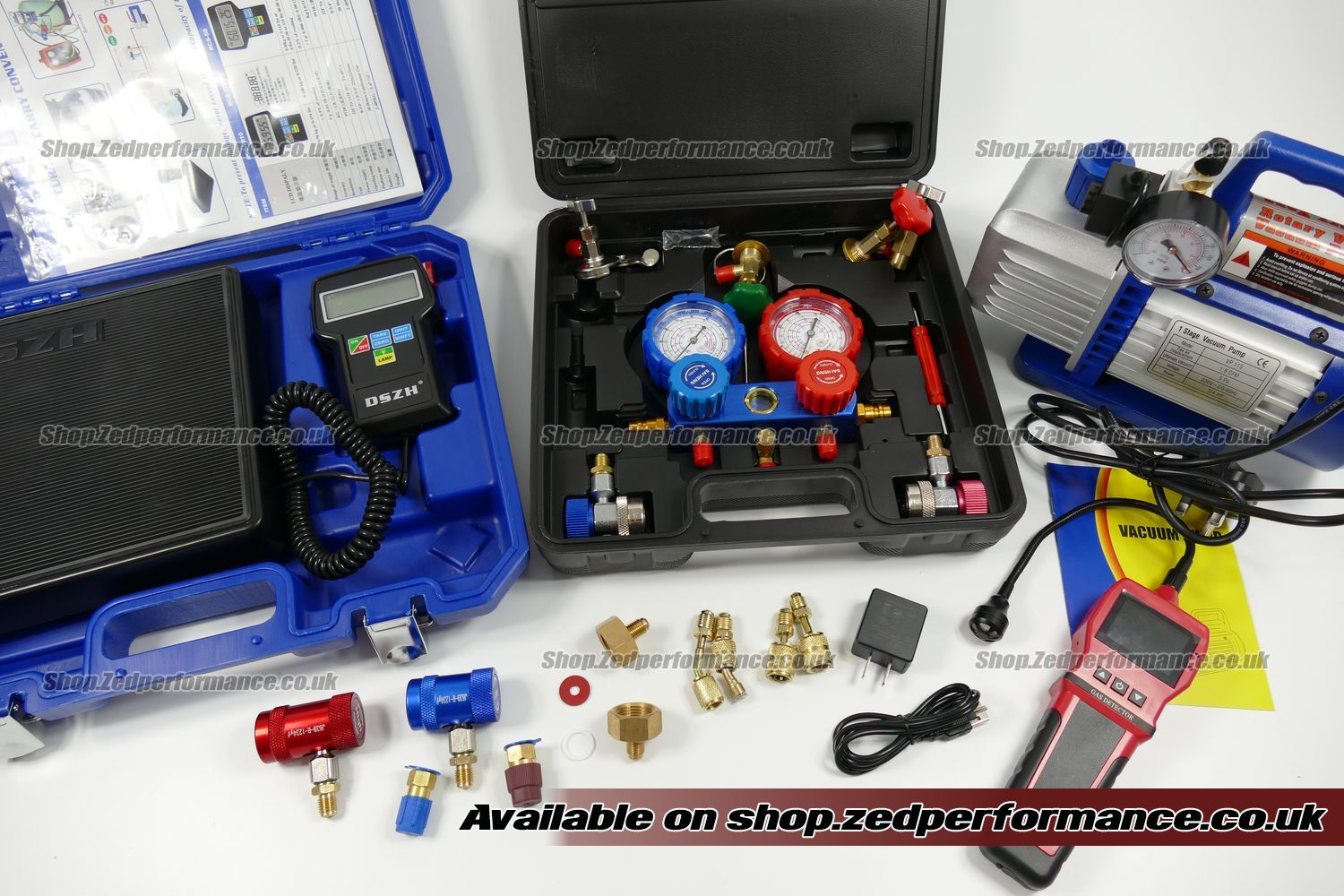

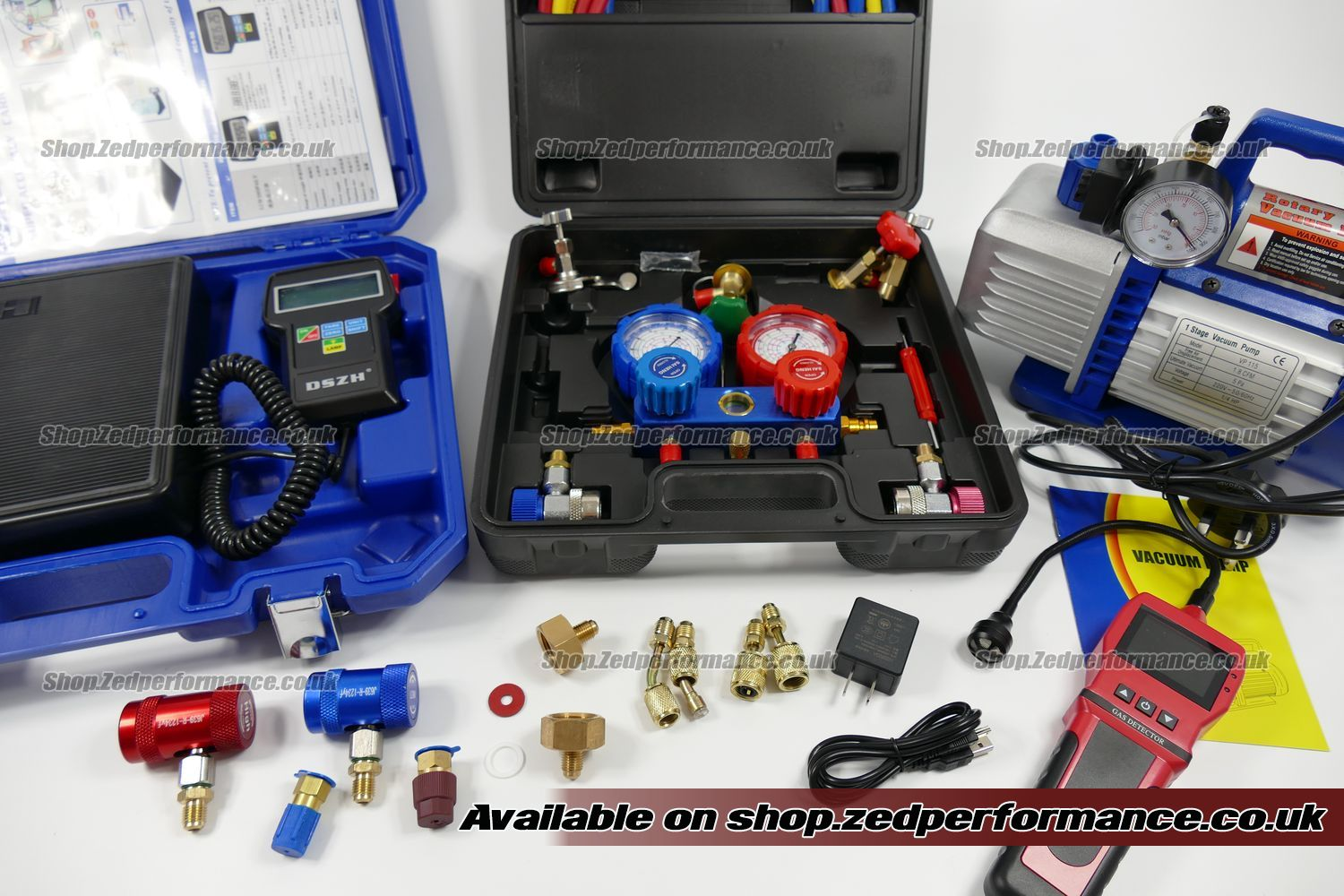

On this page we carefully selected tools for HVAC automotive/car AC maintenance purposes only! This tool bundle is not for you if you wish to service your domestic AC & heat-pump unit! This AC tool set if for car mechanics & garages who wish to carry out basic maintenance work on newer vehicles fitted with R1234yf and R134a systems or older vehicles with R12 retrofitted with R437a refrigerants. The base price will include ALL PARTS and TOOLS shown in the main pictures of this page but we have made a full list of the content:

BASE PRICE INCLUDES THE FOLLOWING TOOLS:

* The gauge scale is for R134a, R437a, R1234yf

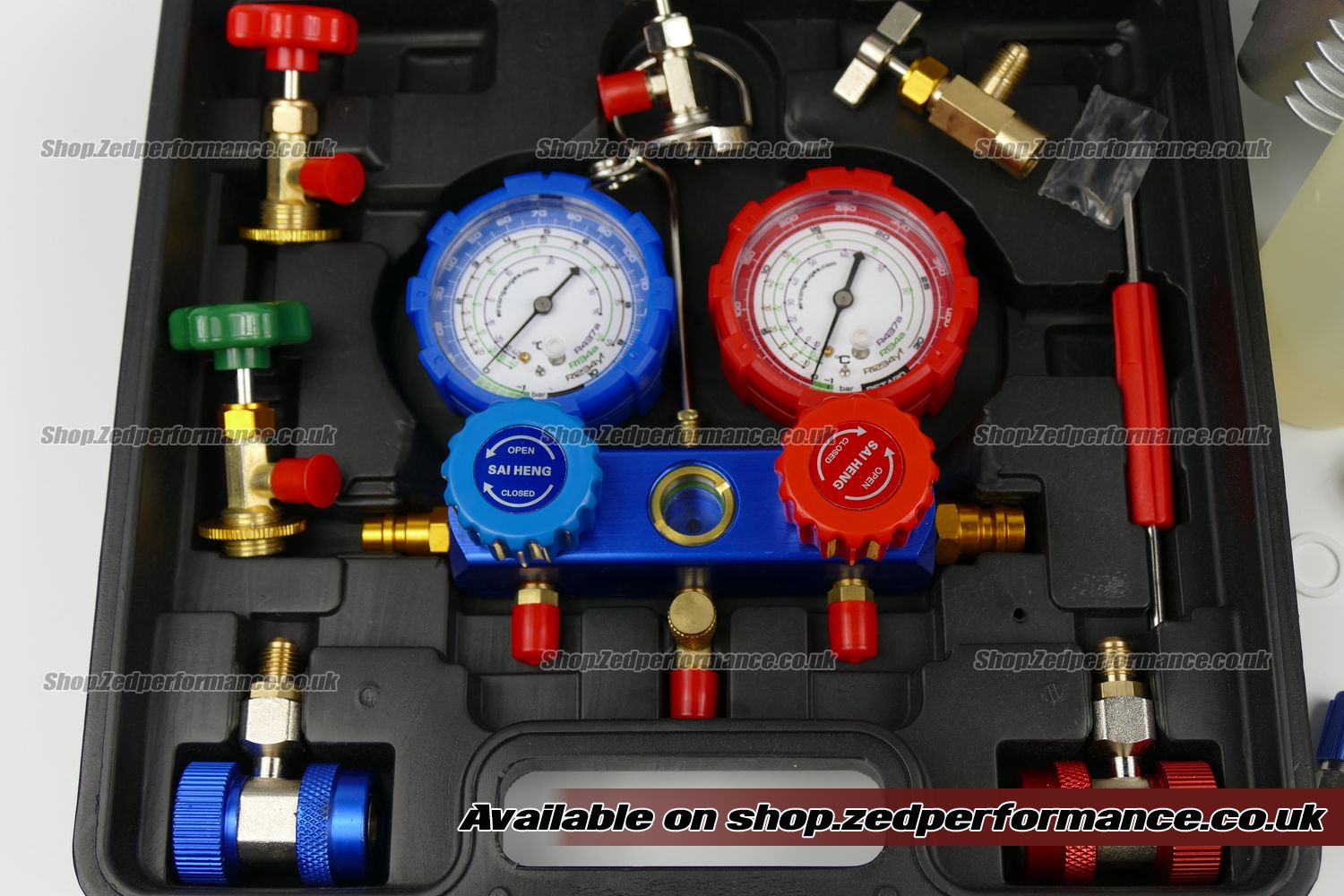

*Refrigeration double gauge manifolds. Provides accurate reading 120PSI on low side, 500PSI on high side.

*2 way valves aluminium alloy manifolds with sight glass

*3pcs charging hoses with 1/4" SAE

*Length of charging hoses is 1.75 meter.

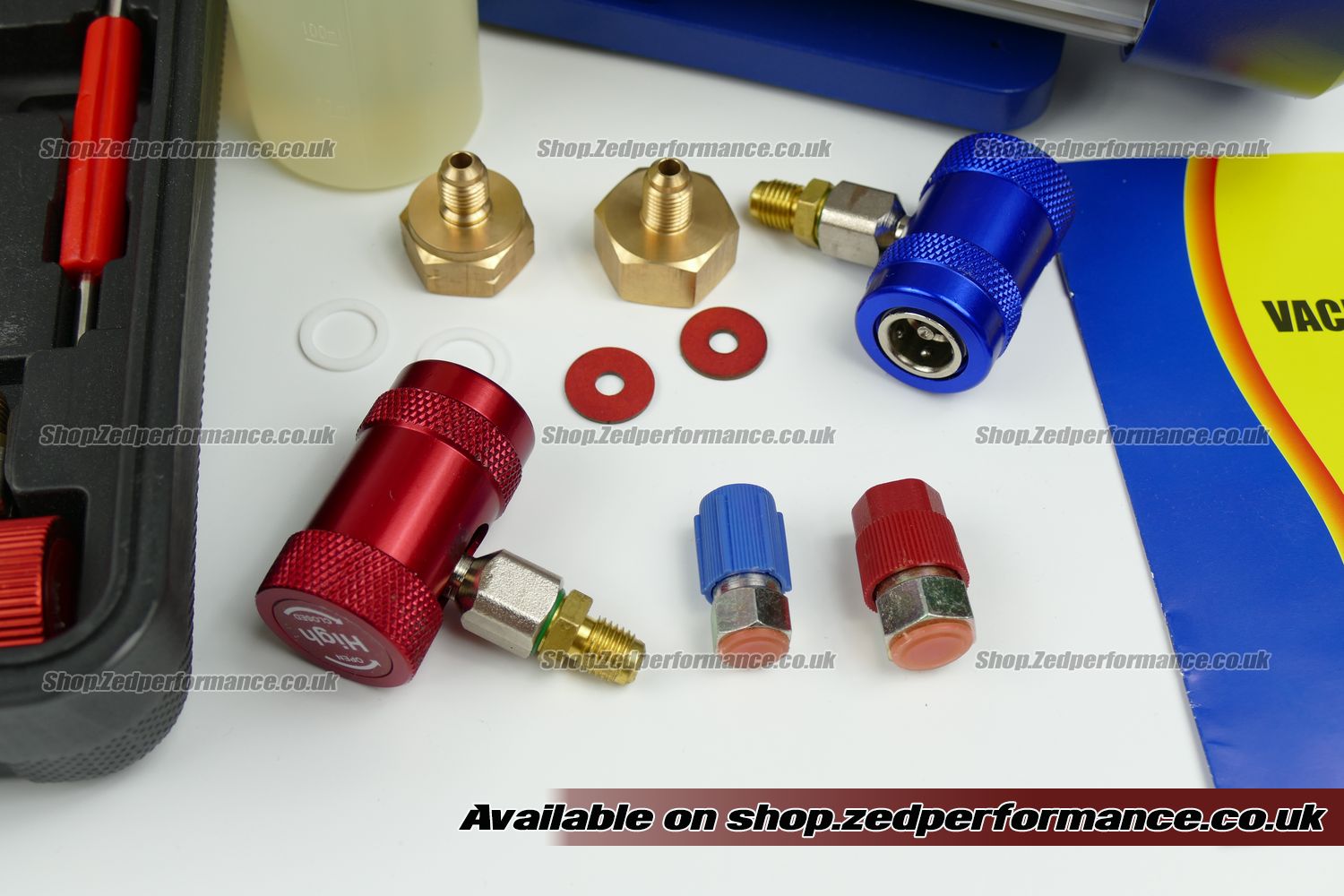

*for car AC systems equipped with R134a refrigerants - QC-19L & QC-19H quick couplers
*for modern vehicle's AC systems with R1234yf refrigerants LOW and HIGH side quick couplers

*Portable plastic case packed

*Schrader valve removal tool

*No English user manual included

* R22 Imperial adapter

* R22 Metric adapter

* 1pc of R410a adaptor
* 1pc of R32 adaptor
* 1+1 R12 LOW & HIGH side adaptors for older Volvo and Mercedes models. With these you can service older vehicles.

Sometimes it is easier to obtain refrigerant canisters. These cans require special piercing tap valves to be opened. These are included below:

* All canister tap valve (silver color) (It can also be used for R600a canisters)

* 7/16" R600a tap valve (red color - please make sure that your canister has 7/16" thread on the canister)

* M14 R134a tap valve (green color)

* 1/2" to 1/4" tap valve for R134a bottles (gold color)

In case you just simply want to use larger refrigerant bottles/cylinders we added adapters to the basic bundle:

* R134a cylinder to 1/4" flare male adaptor

* R1234yf cylinder to 1/4" flare male adaptor

Rotary vane vacuum pump fitted with vacuum gauge and solenoid valve. This solenoid helps with tracking refrigerant loss when vacuuming the AC system.

High Efficiency and Low Noise

Heavy-duty Aluminum Alloy Casing

With Oil Drain Plug Positioned at Bottom of Oil Reservoir

Internal High Volume Cooling Fan For Extended Use

Exhaust Port with Exhaust Cap

Direct Drive Motor Allowing Easy Starting and is Maintenance Free

Oil Sight Glass For Monitoring Oil Levels

ON/OFF Switch

Non Slip Cushion Handle

1 bottle if compressor oil is included.



SPECS:

Voltage /Frequency: 220V-240V/60HZ

UK plug

Flow Rate: 51 L/MIN (1.8 CFM)

Ultimate Vacuum: 5 Pa (0.05mbar)

RPM: 1400 RPM

Power: 1/4HP

Oil Capacity: 300 ml

Dimension: 10 1/2" x 4 1/2" x 8 1/2

1 year warranty.



When you receive the kit please fill it with vacuum pump oil first and DO NOT run dry!

For up to 100KG refrigerant cylincer/bottles.
